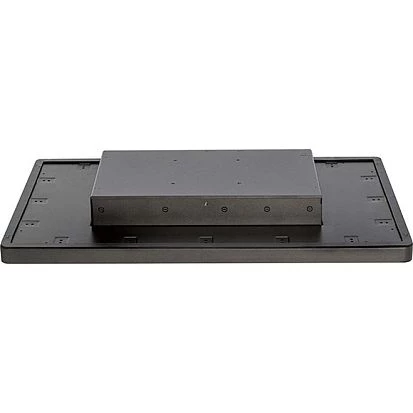

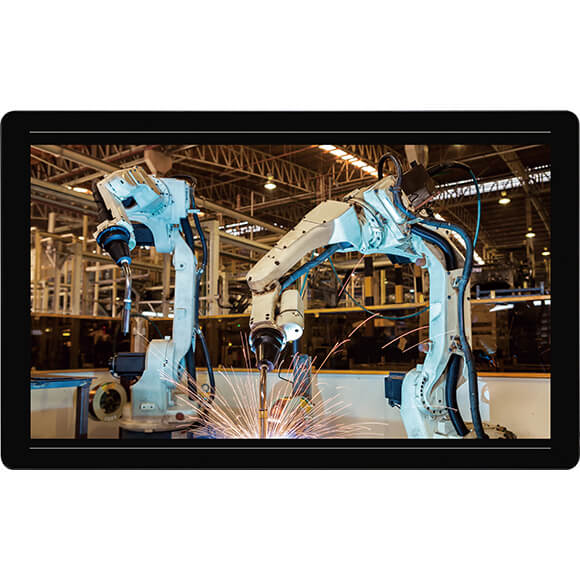

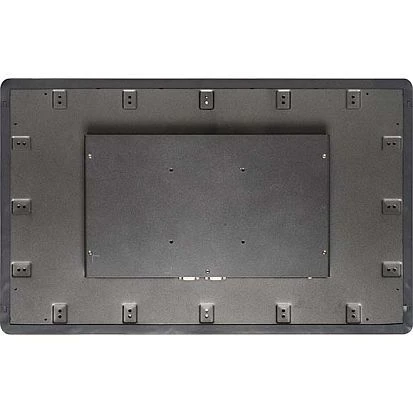

IPPC-2460-A11
NEXCOM
SKU: 80077700
23.8" Fanless Panel PC, IP66 Front, 1920x1080, 450cd/m2, PCAP Touch, Intel N97 3.6GHz CPU, (up to 16GB) 8GB DDR5 RAM, 1xDP, 2xGbE LAN, 2xCOM, 2xUSB 3.2, 1xUSB 3.2 Type-C DP Alt, Optional (2xCOM, DIO, Audio), 1xMiniPCIe, 2xM.2 Key-B, PCIe x1, 24VDC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
450 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB 2.0
1
USB v3.x
3
Digital Input-Output
Channels of DIO
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
M.2
1
Extension Slots
Total
4
PCI Express x1
1
M.2
2
M.2 Form Factor
3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
LED / Controls
Controls
On/Off
Connectors
Connectors

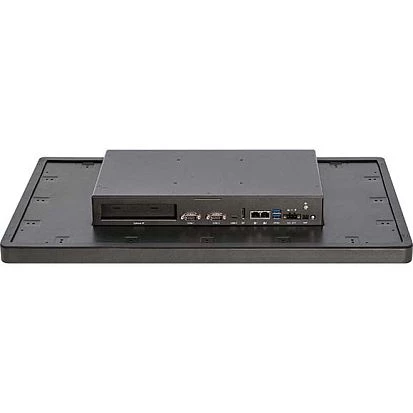

2xDB9, 2xRJ45 Ethernet, 2xUSB, Display Port, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
590 mm
Height
366.6 mm
Depth
71.66 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
