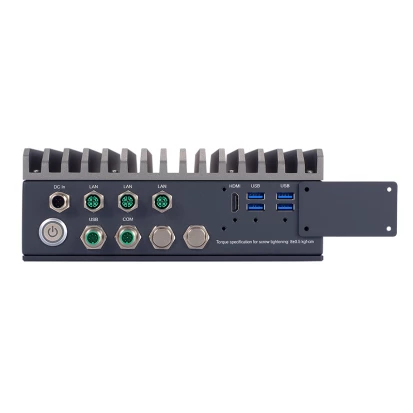

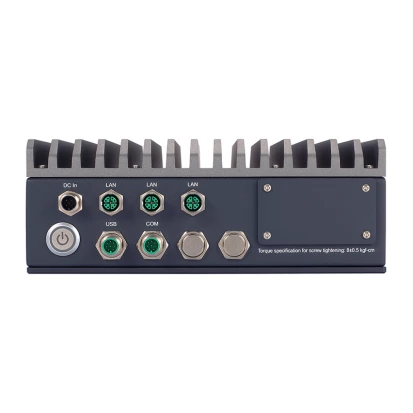

IPC980-H-F1
AXIOMTEK
SKU: 80126500
Fanless Rugged IPC980 System, IP67 Full, Intel 14/13/12th Gen Core i7/i5/i3 CPU, H610E Chipset, Up to 96GB DDR5 RAM, HDMI, 4xUSB3.2, 6xM12 (2xGbE LAN, 1xGbE LAN, 2xUSB2.0, 1xCOM, DC-in), 2x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-M, 18-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP67
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 4xUSB, M12 DC-in, M12 COM, 3xM12 LAN, 1xM12 A-code USB
System Power Input
Input Voltage DC
18..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
255 mm
Height
86.5 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
IEC 61000-6-2, IEC 61000-6-4, CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.8 kg
Gross Weight
6.8 kg
