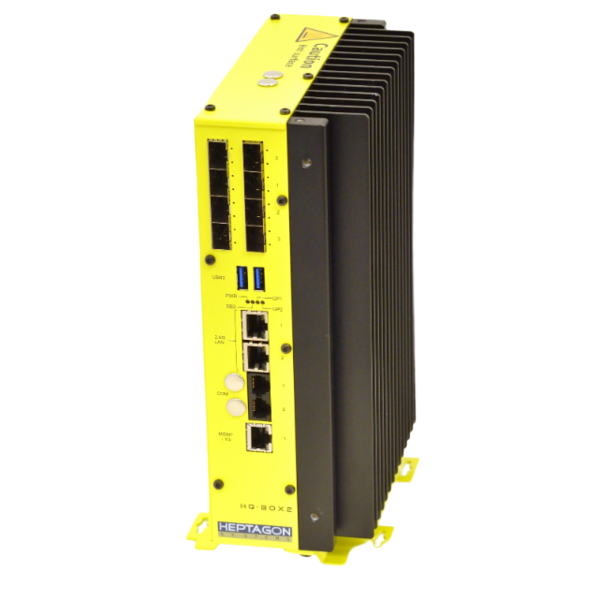

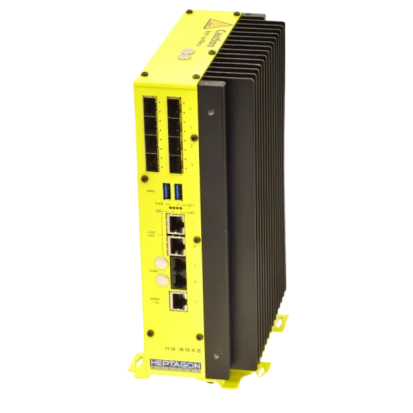

HQ-Box2-AI-IM
Heptagon Systems
SKU: 80327400
Rugged HQ-Box2-AI Server, Support Intel Xeon D-1700/1800 Series CPU, Up to 384GB DDR4 ECC RAM, DP by AST2600, 2x2.5GbE LAN, 1xGbE LAN, Up to 8xSFP+, 2xUSB, 2xCOM, 5xM.2 Key-M (SSD/AI Accel.), 1xM.2 Key-B, 1xM.2 Key-E, 1xPCIe x8 FHHL, 12VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fans
CPU
СPU Generation/Family
Ice Lake
Processor Installed
Options Available – Contact Sales
Socket
Varies by Configuration
CPU Support Type
Xeon
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
3xDIMM
ECC
Yes
Registred
Yes
Maximum Memory
384 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort
Ethernet
Controller Type
Intel i210, Intel i226
Total Ethernet
11
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
10 Gbit/s SFP+ Ports
8
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB v3.x
2
Drive interfaces
M.2
5
Extension Slots
Total
7
M.2
7
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
3xRJ45 Ethernet, 2xUSB, Display Port, DC input (terminal block), 2xRJ11, 8xSFP+
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows Server 2019, Windows 11, Windows Server 2022
Dimensions and weight
Width
237 mm
Height
139 mm
Depth
176 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-95%
MTBF
100000 h
Standards and Certifications
Certifications
CE, FCC
Safety
IEC 60950-1
Dimensions
Net Weight
3.25 kg
Gross Weight
4 kg
