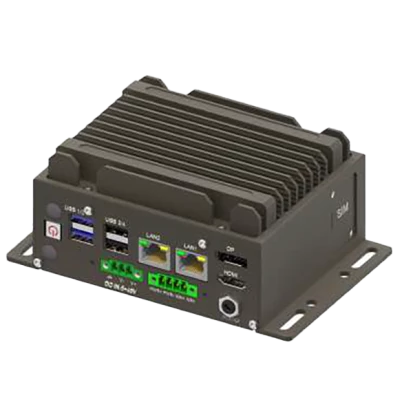

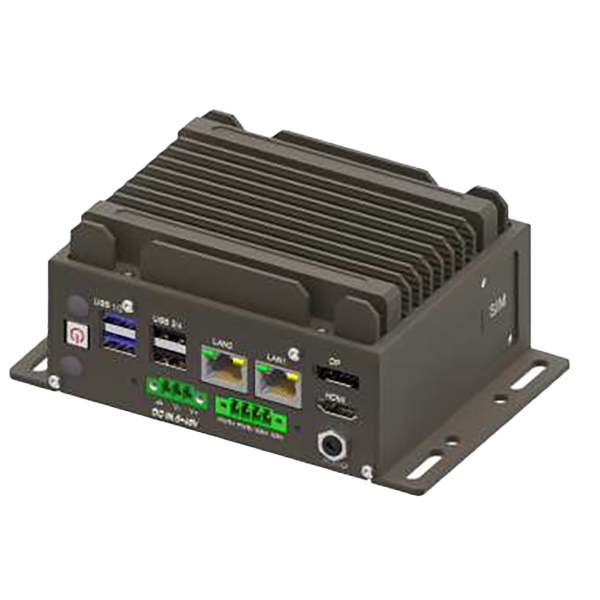

RVS-Z1
Enbik Technology Co.,Ltd
SKU: 80334300
RugCon RVS-Z DIN-Rail / Wall-mount Mini Edge Computer, Intel Atom x7433RE (optional x7211RE,x7425E,N200,N355) CPU, up to 16GB DDR5 RAM, M.2 2242 SATA, Mini-PCIe, M.2 Key E, DP/HDMI/2xLAN/4xUSB, Ignition Control, 6-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Amston Lake, Twin Lake
Processor Installed
Options Available – Contact Sales
Socket
Varies by Configuration
CPU Support Type
Atom, Core N-Series
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
RAID Levels
0, 1
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Audio, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
6..48 V
Power Ignition Control
Yes
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
120 mm
Height
60 mm
Depth
95 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
0-95%
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
