IEC-G510

IEC-G510

Arbor
SKU: 80200900

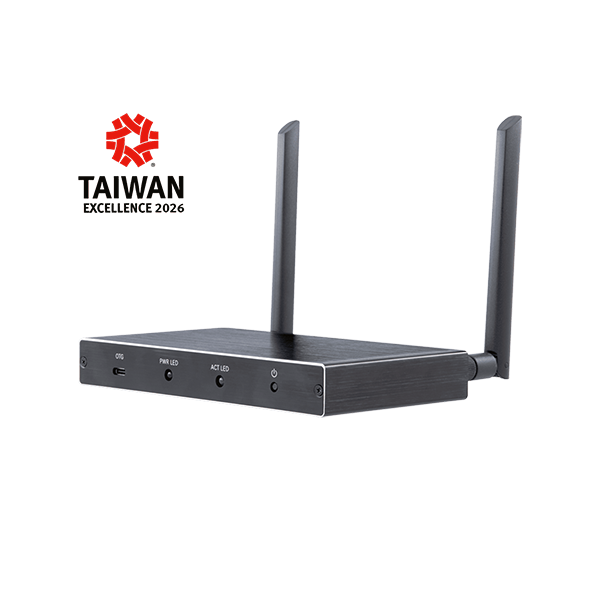

Digital Signage Player, MediaTek Genio G510 (MT8370) SoC, 4GB LPDDR4 RAM, 64GB eMMC, 2xHDMI, 1xGbE LAN, 1xRS232, 1xUSB 2.0, 1xUSB 3.1, 1xUSB-OTG Type-C, MicroSD, 1xM.2 3042/3052 Key-B, Audio, 12VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
Processor Installed
MediaTek MT8370 (Genio 510)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
3052 B, 3042 B
SIM Card slots
Yes, 1, Micro-SIM
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xHDMI, RJ45 Ethernet, 2xUSB, Mic In, Line Out, DC Input, SIM Card Slot, MicroSD card slot, USB type C
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android, Linux kernel 5.x
Dimensions and weight
Width
195 mm
Height
100 mm
Depth
20 mm
Operating Conditions
Operating Temperature
-10..55 °C
Standards and Certifications
Certifications
CE/FCC, rohs
Dimensions
Net Weight
0.4 kg
Gross Weight
0.65 kg

Documentation
IEC-G510-Datasheet.pdf
