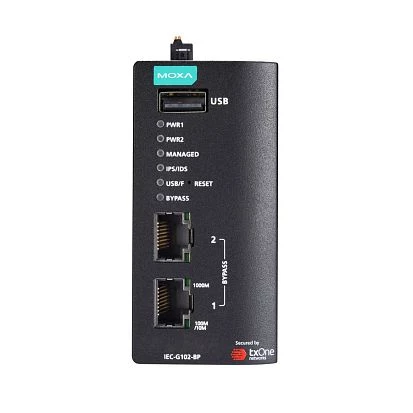

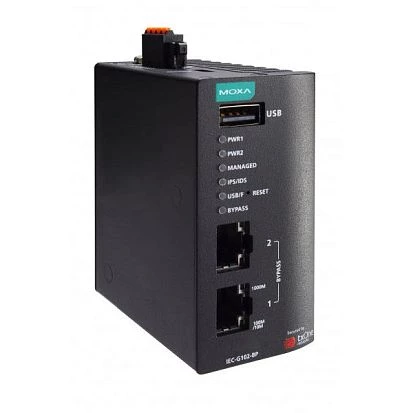

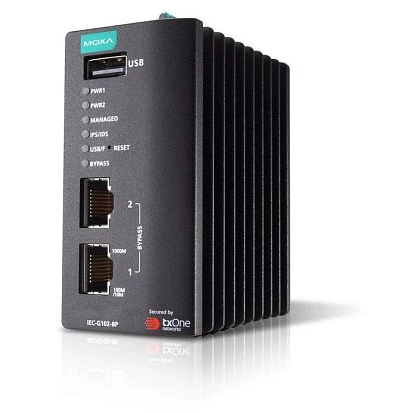

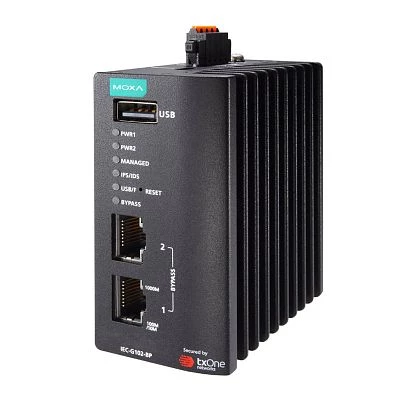

IEC-G102-BP-Pro
MOXA
SKU: 09009900
Industrial Intrusion Prevention System (IPS) device with 2x10/100/1000Base-TX ports, 1 year of pattern updates, centralized management via Security Dashboard Console, -10..60C operating temperature
End-of-life product
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xRJ-45
Bypass
2
Switch Properties
Managed
Yes
Supported functions
Deep Packet Inspection, icmp_flood, igmp_flood, udp_flood, udp_port_scan, tcp_syn_flood, tcp_port_syn_scan, tcp_port_fin_scan, tcp_port_null_scan, tcp_port_xmas_scan, arp_flood, icmp_death
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
Connectors
Connectors
Console Port USB
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
40 mm
Depth
70 mm
Height
83 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032, EN 55035
Explosion safety
UL/cUL Class I Division 2
Safety
UL 60950-1, UL 62368-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.33 kg
Gross Weight
0.5 kg
