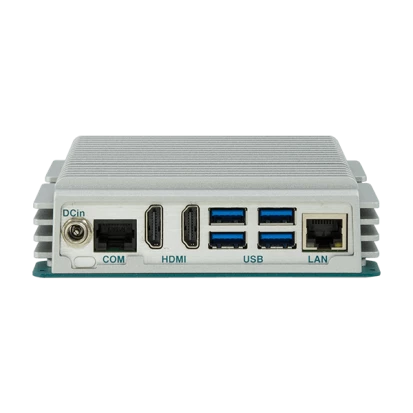

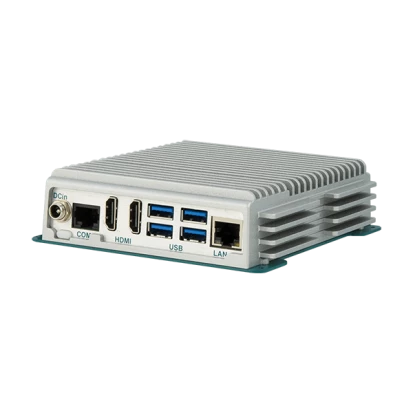

IEC-3904-Series
Arbor
SKU: 57988700
Digital Signage Player, Intel 11th Gen Core i7/i5/i3/Celeron CPU, 2xSO-DIMM DDR4 Sockets, 2xHDMI, 1xGbE LAN, 1xRJ45 RS232, 4xUSB 3.0, 1xM.2 2280 Key-M, 24VDC-in w/ 60W Power Adapter, -20..70C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
120 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, RJ45 Ethernet, 4xUSB, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
130 mm
Height
124 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation
Shock
Operating 10G (11ms), non-operating 20G
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.73 kg
Gross Weight
1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
120 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, RJ45 Ethernet, 4xUSB, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
130 mm
Height
124 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation
Shock
Operating 10G (11ms), non-operating 20G
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.73 kg
Gross Weight
1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
120 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, RJ45 Ethernet, 4xUSB, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
130 mm
Height
124 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation
Shock
Operating 10G (11ms), non-operating 20G
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.73 kg
Gross Weight
1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
120 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, RJ45 Ethernet, 4xUSB, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
130 mm
Height
124 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation
Shock
Operating 10G (11ms), non-operating 20G
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.73 kg
Gross Weight
1 kg
