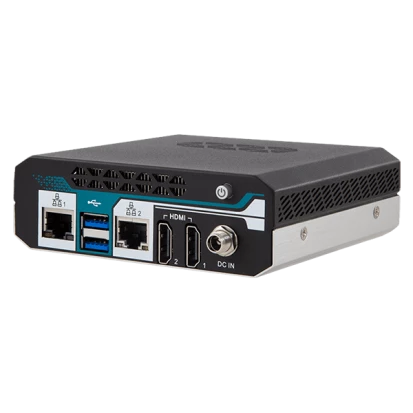

IEC-3702-1135G7
Arbor
SKU: 57976900
Digital Signage Player, Intel 11th Gen Core i5-1135G7 CPU, 8GB (64GB Max.) DDR4 RAM, 128GB NVME SSD, 2xHDMI, 1x2.5GbE LAN, 1xGbE LAN, 1xRS232, 4xUSB 3.2, 1xUSB 3.2 Type-C DP Alt., 1xM.2 2280 Key-M, Audio, 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, Type C DP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
5
USB v3.x
5
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
Controls
On/Off
Connectors
Connectors

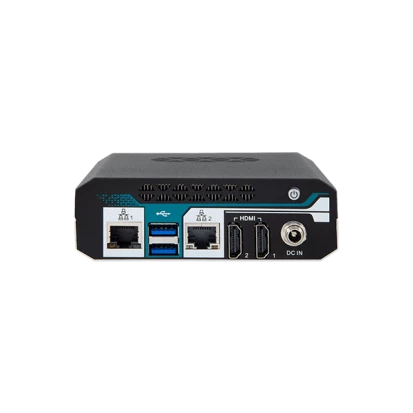

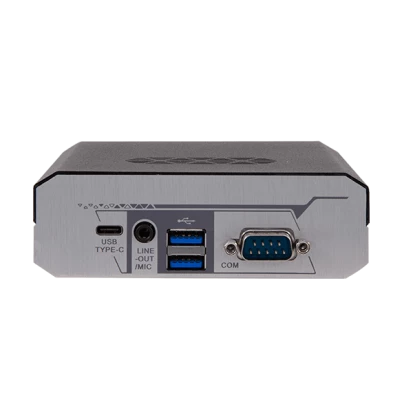

DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, USB type C
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10
Dimensions and weight
Width
115.4 mm
Height
107.6 mm
Depth
37 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-95%
Vibration
1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operatio
Shock
Non-operating 10G
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.4 kg
Gross Weight
0.65 kg
