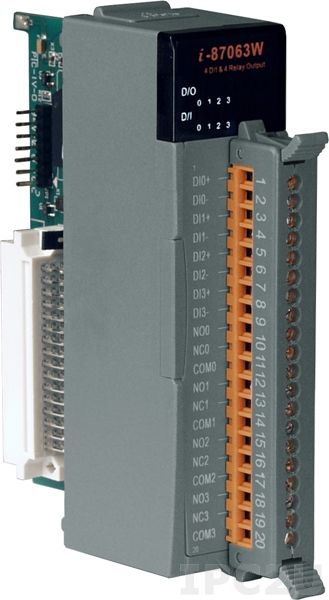

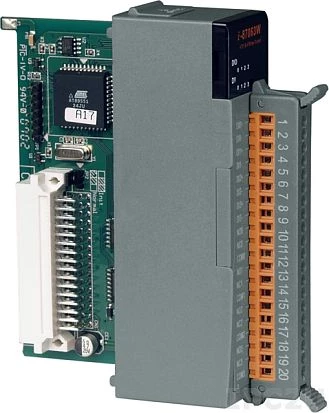

I-87063W
ICP DAS
SKU: 03775200
Isolated Digital I/O Module, High Profile
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
