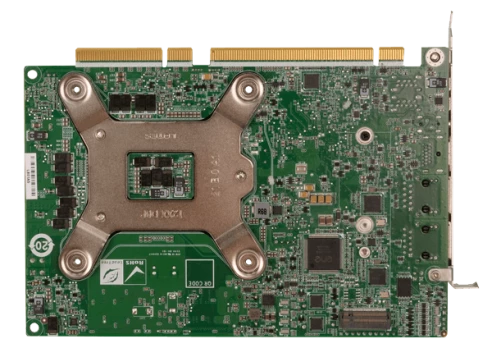

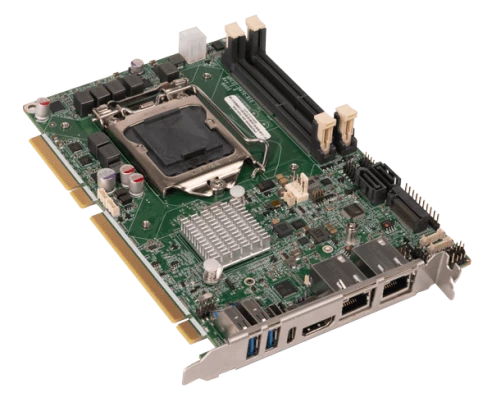

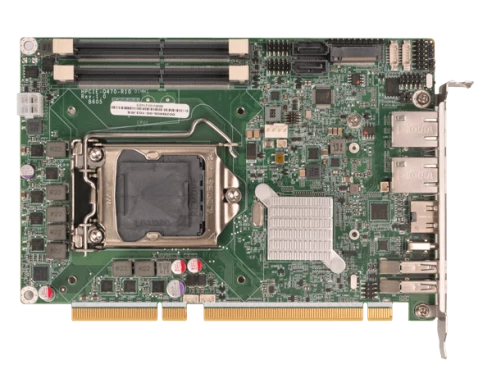

HPCIE-Q470
IEI
SKU: 09600100
Half-size PICMG 1.3 CPU card upports LGA1200 Intel 10th Gen. Core i9/i7/i5/i3/Pentium/Celeron CPU with Q470E, DDR4 SO-DIMM, HDMI, USB-C, Dual Intel 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHs
Price on request
Available
Available
System Architecture
Form Factor
Half Size PICMG 1.3
CPU
СPU Generation/Family
Comet Lake, Rocket Lake-S
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel Q470E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
2
USB v3.x
3
Drive interfaces
RAID Levels
1
M.2
1
Extension Slots
PCI Express x16
1
M.2
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, USB type C
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
126 mm
Length
169 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.5 kg
Gross Weight
0.51 kg
