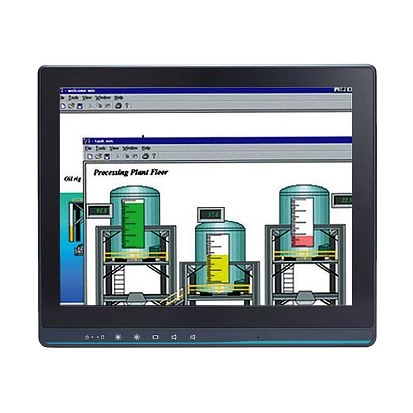

GOT115-319-N4200-C-DC
AXIOMTEK
SKU: 08773900
15" XGA TFT Fanless Touch Panel Computer with Intel Pentium N4200 up to 2.4GHz, PCAP touch, 1x204-pin DDR3L SO-DIMM, 1x2.5" SATA HDD/SSD, mSATA, 1xCOM, 4xUSB, 2xGbE LAN, Line Out, 1xMini PCIe,1xM.2, MicroSD, screw type power input with DC cable
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Socket
CPU onboard
Max CPU frequency
2.5 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
MicroSD
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
9..24 V
Power Consumption
28.8 W
Dimensions and weight
Width
329.9 mm
Height
306 mm
Depth
50 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
3.2 kg
Gross Weight
4.8 kg
