GOT110-316-R-PoE-PD

GOT110-316-R-PoE-PD

AXIOMTEK
SKU: 08428400

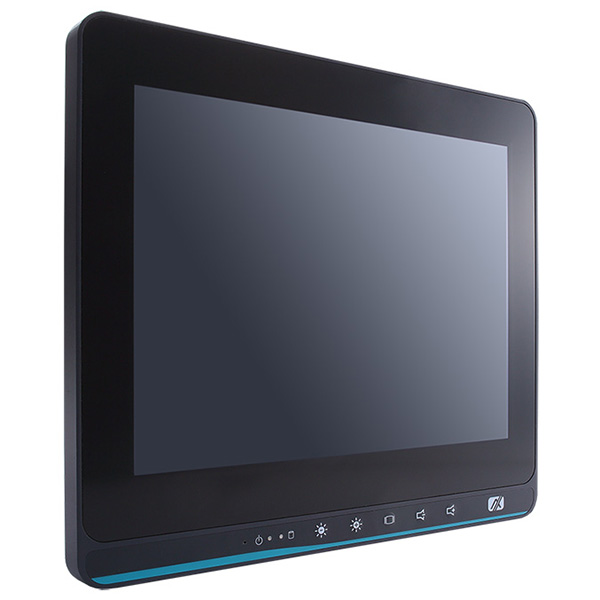

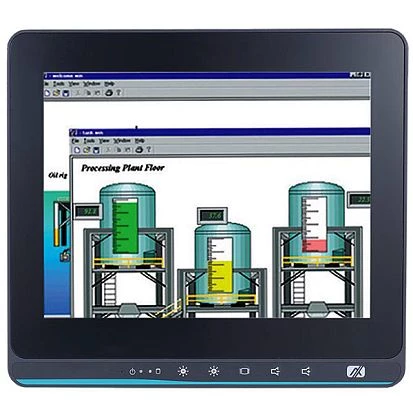

10.4" XGA TFT Fanless Touch Panel Computer with Intel Celeron N3350 1.1GHz, resistive touch, 1x204-pin DDR3L SO-DIMM, 1x2.5" SATA HDD/SSD, mSATA, HDMI, 2xCOM, 4xUSB 3.0, 2xGbE LAN, Line Out, 2xMini PCIe, PoE PD Power Input
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage AC
100..240 V
Power Consumption
25.5 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
259.43 mm
Height
232.73 mm
Depth
43.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for SSD
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.8 kg
Gross Weight
3 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage AC
100..240 V
Power Consumption
25.5 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
259.43 mm
Height
232.73 mm
Depth
43.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for SSD
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.8 kg
Gross Weight
3 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage AC
100..240 V
Power Consumption
25.5 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
259.43 mm
Height
232.73 mm
Depth
43.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for SSD
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.8 kg
Gross Weight
3 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage AC
100..240 V
Power Consumption
25.5 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
259.43 mm
Height
232.73 mm
Depth
43.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for SSD
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.8 kg
Gross Weight
3 kg

Documentation
Datasheet GOT110-316-PoE
Documentation
Datasheet GOT110-316-PoE
Documentation
Datasheet GOT110-316-PoE
Documentation
Datasheet GOT110-316-PoE
