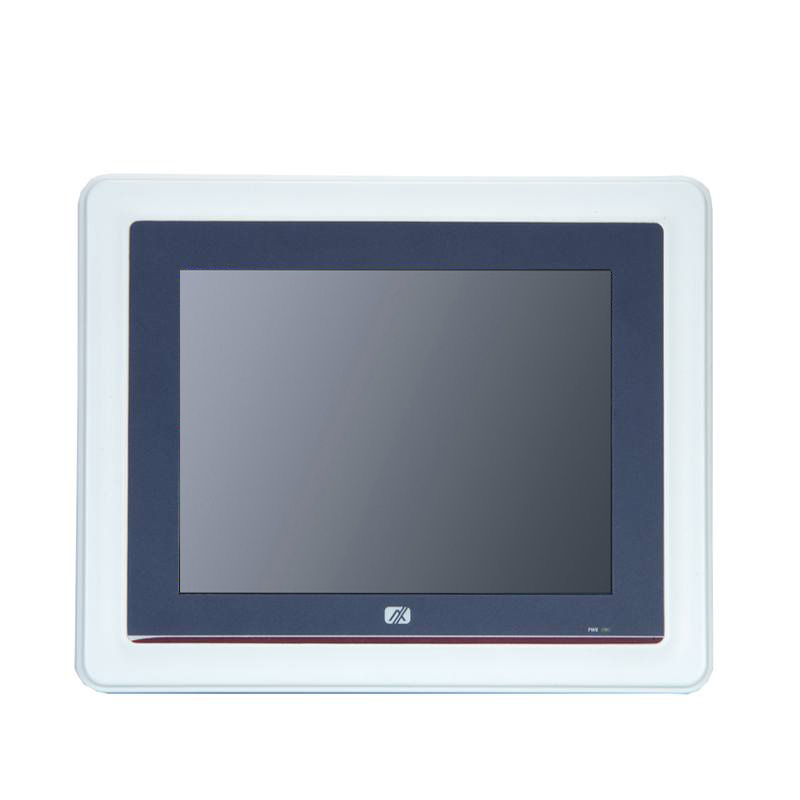

GOT-5840T-845-N-DC
AXIOMTEK
SKU: 09577700
8.4" SVGA Intel Celeron N3060 1.60GHz(up to 2.48GHz) fanless touch panel computer with DDR3L, HDMI, 2xGB LAN, 2xCOM, 2xUSB 3.0, Audio, 2xMini PCIe (1xmSATA), IP65 front, 9-36V DC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3060
Socket
FCBGA1170
Max CPU frequency
2.48 GHz
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows 8.1
Dimensions and weight
Width
250.7 mm
Height
204.7 mm
Depth
45.8 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
2G, 5~500Гц
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.3 kg
Gross Weight
2.25 kg
