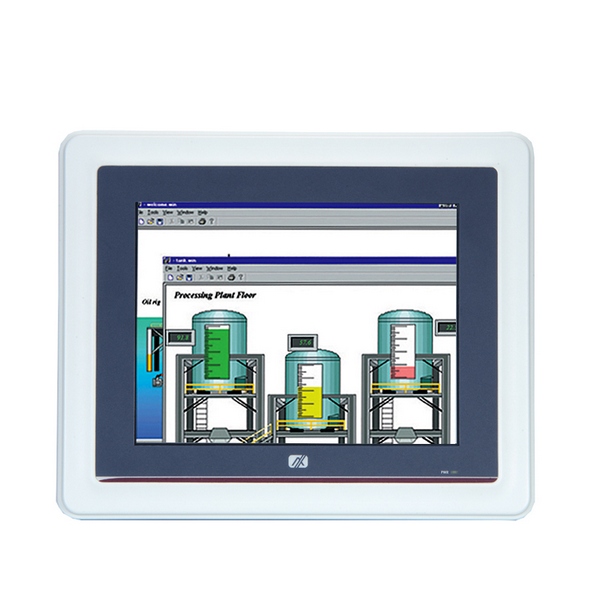

GOT-5840T-845-J

GOT-5840T-845-J

AXIOMTEK
SKU: 07356300
8.4" SVGA Intel Celeron N3060 1.60GHz fanless touch panel computer with DDR3L, HDMI, 2xGB LAN, 2xCOM, 2xUSB 3.0, Audio, 2xMini PCIe (1xmSATA), IP65 front, power adapter AC DC
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3060
Socket
CPU onboard
Max CPU frequency
2.48 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 2xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
250.7 mm
Height
204.7 mm
Depth
45.8 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
2G, 5~500Hz, random for CompactFlash
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
1.3 kg
Gross Weight
2.25 kg
