GOT-5840T-834-DC

GOT-5840T-834-DC

AXIOMTEK
SKU: 06775000

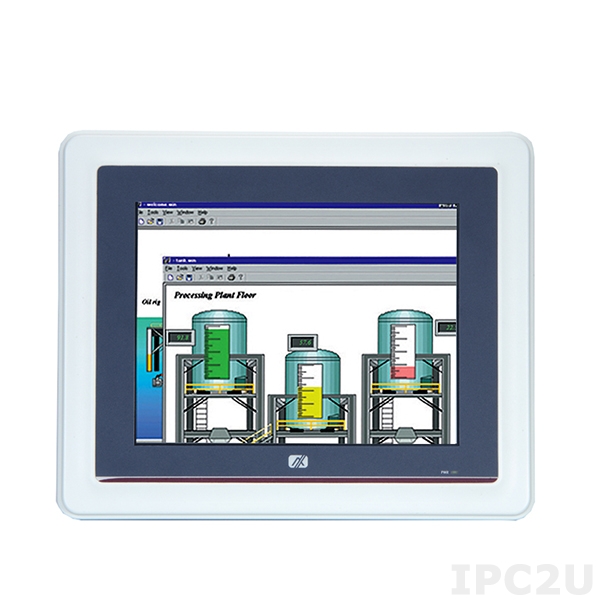

8.4" SVGA Intel Celeron J1900 2.42GHz fanless touch panel computer with DDR3L, 2xGB LAN, 2xRS-232/422/485, 2xUSB 3.0, Audio, CFast/mSATA, 1x PCI Express Mini, WLAN antenna, IP65 front, DC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB v3.x
2
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 2xRJ45, 2xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
250.7 mm
Height
204.7 mm
Depth
45.8 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
2G, 5~500Hz, random for CompactFlash
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.39 kg
Gross Weight
2.39 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB v3.x
2
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 2xRJ45, 2xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
250.7 mm
Height
204.7 mm
Depth
45.8 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
2G, 5~500Hz, random for CompactFlash
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.39 kg
Gross Weight
2.39 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB v3.x
2
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 2xRJ45, 2xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
250.7 mm
Height
204.7 mm
Depth
45.8 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
2G, 5~500Hz, random for CompactFlash
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.39 kg
Gross Weight
2.39 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8.4 "
Maximum resolution
800x600 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB v3.x
2
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 2xRJ45, 2xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
250.7 mm
Height
204.7 mm
Depth
45.8 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
2G, 5~500Hz, random for CompactFlash
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.39 kg
Gross Weight
2.39 kg

Documentation
Datasheet GOT-5840T-834
Documentation
Datasheet GOT-5840T-834
Documentation
Datasheet GOT-5840T-834
Documentation
Datasheet GOT-5840T-834
