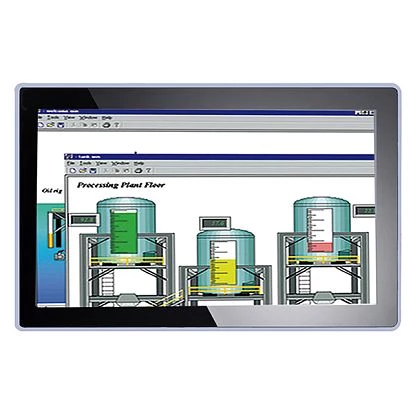

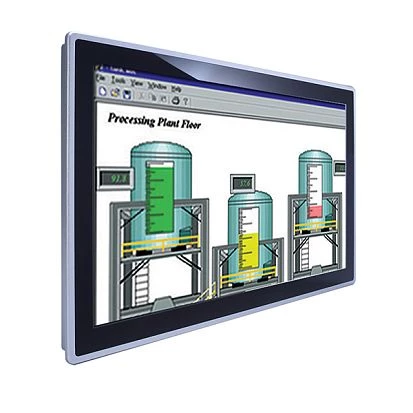

GOT-3217WL-845-PCT-J

GOT-3217WL-845-PCT-J

AXIOMTEK
SKU: 07522500
21.5" FHD TFT Fanless Touch Panel Computer, projected capacitive touch, Intel Pentium N3710 1.6GHz, 1x204-pin DDR3L-1333/1600 SO-DIMM, 1x2.5" SATA HDD, mSATA, 2xCOM, 4xUSB, 2xGbE LAN, Audio, 2xMini PCIe, power adapter AC DC 60W
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Pentium N3710
Socket
CPU onboard
Max CPU frequency
2.56 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCI
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off, KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
48 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
547.6 mm
Height
339 mm
Depth
58.5 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
1G
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
7.6 kg
Gross Weight
10.5 kg
