GOT-318WL-845-PCT-DC

GOT-318WL-845-PCT-DC

AXIOMTEK
SKU: 08032000

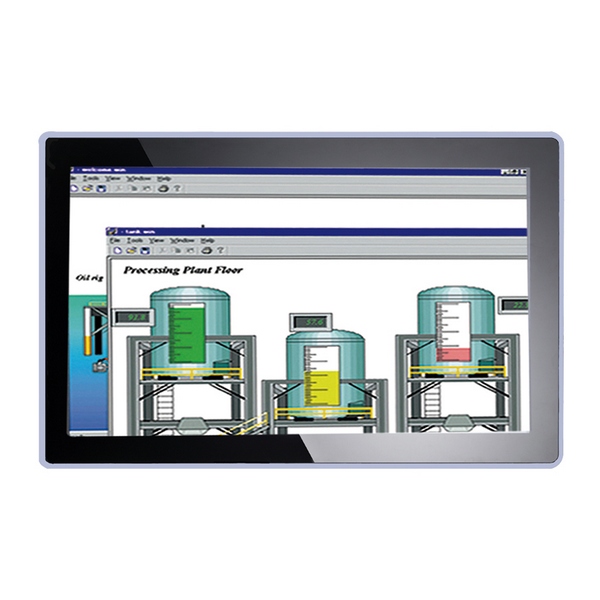

18.5" WXGA TFT Fanless Touch Panel Computer, Intel Pentium N3710 1.6GHz, 1x 204-pin DDR3L 1333/1600 MHz, PCAP, 1x 2.5" SATA HDD, 1xmSATA, 1xCFast, 2xGbE LAN, 2xCOM, 4xUSB, 2xPCIe Mini, Audio, 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Pentium N3710
Socket
CPU onboard
Max CPU frequency
2.56 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Consumption
48 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
58.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1G, 10 ~ 500 Hz
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.8 kg
Gross Weight
8.2 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Pentium N3710
Socket
CPU onboard
Max CPU frequency
2.56 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Consumption
48 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
58.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1G, 10 ~ 500 Hz
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.8 kg
Gross Weight
8.2 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Pentium N3710
Socket
CPU onboard
Max CPU frequency
2.56 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Consumption
48 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
58.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1G, 10 ~ 500 Hz
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.8 kg
Gross Weight
8.2 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Pentium N3710
Socket
CPU onboard
Max CPU frequency
2.56 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
KeyPad
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Consumption
48 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
58.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1G, 10 ~ 500 Hz
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.8 kg
Gross Weight
8.2 kg

Documentation
Datasheet GOT-318WL-845
Documentation
Datasheet GOT-318WL-845
Documentation
Datasheet GOT-318WL-845
Documentation
Datasheet GOT-318WL-845
