GOT-315WL-845-PCT-DC

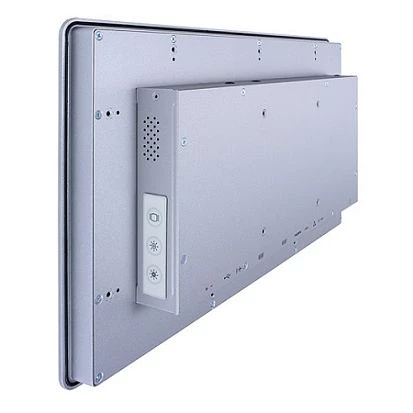

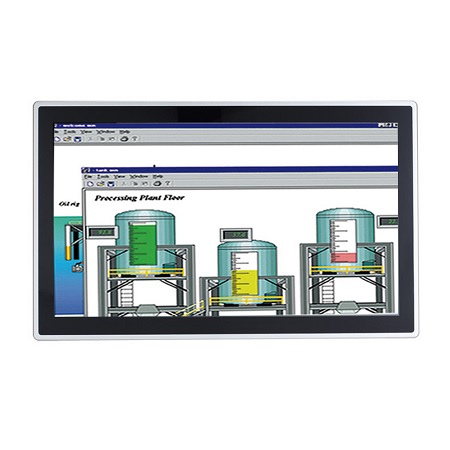

GOT-315WL-845-PCT-DC

AXIOMTEK
SKU: 08024500
15.6" WXGA TFT Fanless Touch Panel Computer, Intel Pentium N3710 1.6 kGHz, 1x204-pin SO-DIMM DDR3L 1333/1600 MGHz, PCAP, 1x 2.5" SATA HDD, 1xmSATA, 2xCOM, 4xUSB, VGA, 2xfull size PCIe Mini Card, 2xLAN, power 24 V DC
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Pentium N3710
Max CPU frequency
2.56 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
LED Bar
Controls
Control Buttons
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Audio Out, DC input (terminal block), 2xDB9 Male
System Power Input
Input Voltage DC
24..24 V
Power Consumption
72 W
Power Supply
Supported Types of Power Supply
DC-DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
396.8 mm
Height
247.1 mm
Depth
59 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1G, 10 ~ 500 Hz, random for 2.5" SATA HDD
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5 kg
Gross Weight
7 kg
