GOT-107W-319-PCT-DC

GOT-107W-319-PCT-DC

AXIOMTEK
SKU: 08482600

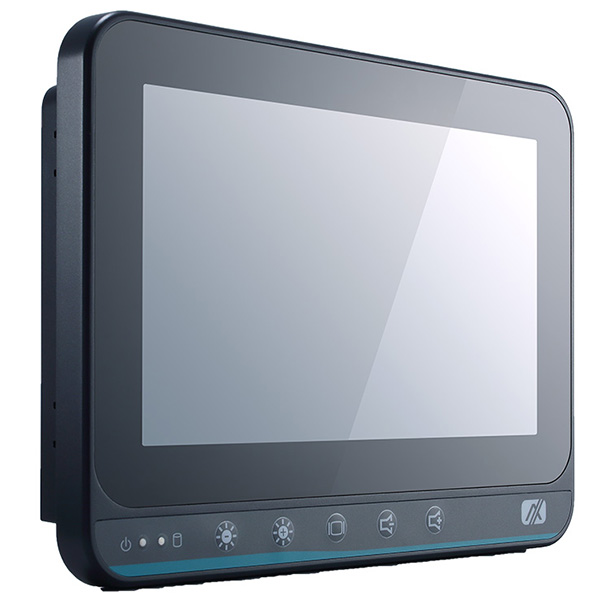

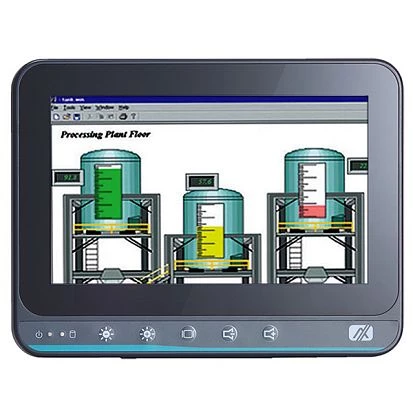

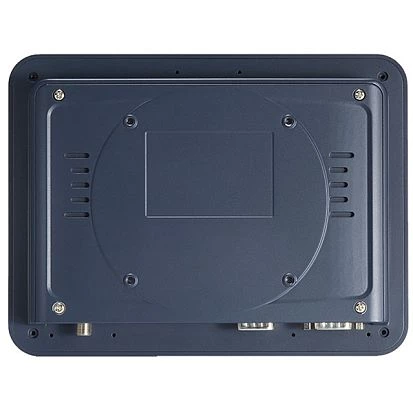

7" WSVGA TFT Fanless Touch Panel Computer with Intel Celeron N3350 1.1GHz, Projected capacitive multi-touch, 1x204-pin DDR3L SO-DIMM, 2xGbE LAN, 2xCOM, 2xUSB 3.0, Line Out, 1xMini PCIe, mSATA, M.2 Key E, IP65/NEMA 4 Front
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Desktop, Panel, Wall VESA 50
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
320 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
1
System Power Input
Input Voltage DC
9..24 V
Power Consumption
20 W
Software
Operating System Compatibility
Windows 8
Dimensions and weight
Width
192 mm
Height
145 mm
Depth
37.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.75 kg
Gross Weight
2 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Desktop, Panel, Wall VESA 50
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
320 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
1
System Power Input
Input Voltage DC
9..24 V
Power Consumption
20 W
Software
Operating System Compatibility
Windows 8
Dimensions and weight
Width
192 mm
Height
145 mm
Depth
37.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.75 kg
Gross Weight
2 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Desktop, Panel, Wall VESA 50
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
320 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
1
System Power Input
Input Voltage DC
9..24 V
Power Consumption
20 W
Software
Operating System Compatibility
Windows 8
Dimensions and weight
Width
192 mm
Height
145 mm
Depth
37.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.75 kg
Gross Weight
2 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Desktop, Panel, Wall VESA 50
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
320 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
1
System Power Input
Input Voltage DC
9..24 V
Power Consumption
20 W
Software
Operating System Compatibility
Windows 8
Dimensions and weight
Width
192 mm
Height
145 mm
Depth
37.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.75 kg
Gross Weight
2 kg

Documentation
Datasheet GOT107W
Documentation
Datasheet GOT107W
Documentation
Datasheet GOT107W
Documentation
Datasheet GOT107W
