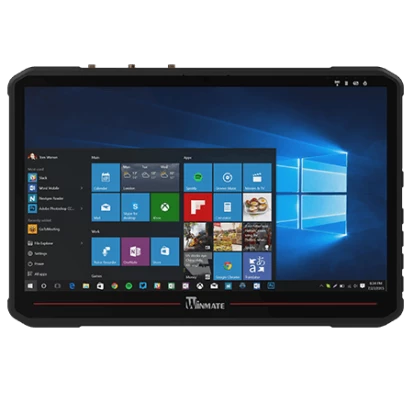

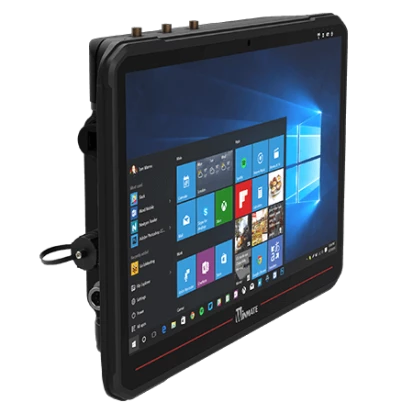

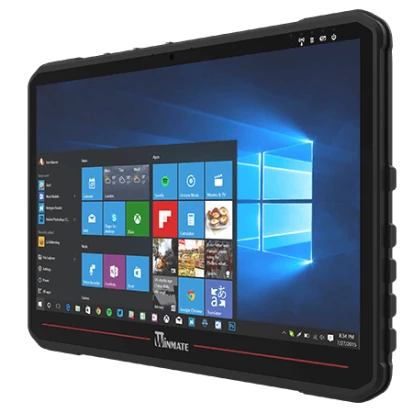

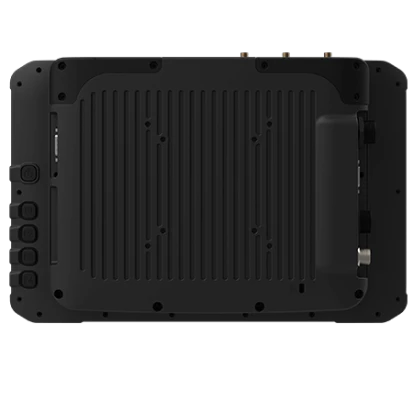

FM14AD-V

FM14AD-V

Winmate
SKU: 10080500
IP65, Vehicle Fanless Panel PC 14" TFT LCD, FHD, P-Cap touch, Intel Core i5-1235U, 8GB DDR5, 128GB NVMe SSD, 2MP camera, WLAN/BT, 10-60VDC-in, Windows 10 IoT Enterprise
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
14 "
Maximum resolution
1920x1280 Dots
Aspect Ratio
16:9
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
CPU onboard
Memory
Form-factor
DDR5
Default on Board Memory
8 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
1
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
2
Antenna characteristics
Cellular interfaces
4G
LED / Controls
Controls
On/Off, Function Keys
Connectors
Connectors
2xDB9, RJ45 Ethernet, 1xUSB, DC Input, USB type C
System Power Input
Input Voltage DC
10..60 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Compatibility
Windows IoT Enterprise 10
Dimensions and weight
Width
342 mm
Height
225 mm
Depth
52 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
3.5 kg
Gross Weight
4.5 kg
