FM12AD (V)

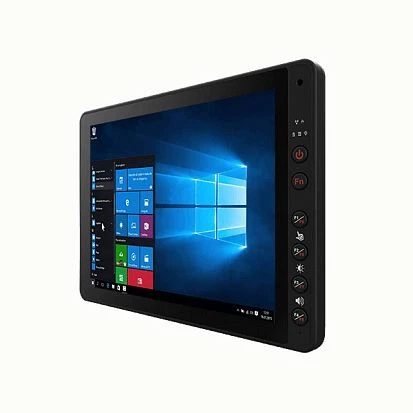

FM12AD (V)

Winmate
SKU: 10134600
12.1" Vehicle Fanless Panel PC, IP65, 1024x768, P-CAP Touch, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 128GB NVMe SSD, WiFi/BT, 2MP Cam., 1xGbE LAN, 1xUSB 3.0 Type-C, 1xUSB 2.0, 2xCOM, 1xSIM, 1xMicroSD, Audio, Win 10 IoT, 10-60VDC-in w/ PSU, -30..50C
Price on request
Available
Available
Construction
Construction Chassis
Magnesium Alloy
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
1
Digital Input-Output
Channels of DIO
4
Industrial Interfaces
CAN Port
1
Extension Slots
Total
1
M.2
1
LED / Controls
LED
LED Bar
Controls
On/Off, Function Keys
Connectors
Connectors
2xDB9, RJ45 Ethernet, 1xUSB, DC Input, SIM Card Slot, SD card slot, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
307 mm
Height
225 mm
Depth
57 mm
Standards and Certifications
Certifications
CE/FCC
EMS
EN 61000-4-2
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Safety
UL 60950-1, EN 60950-1
Vandal Resistance
EN 62262, IK07 level
Dimensions
Net Weight
2.5 kg
Gross Weight
4.5 kg
