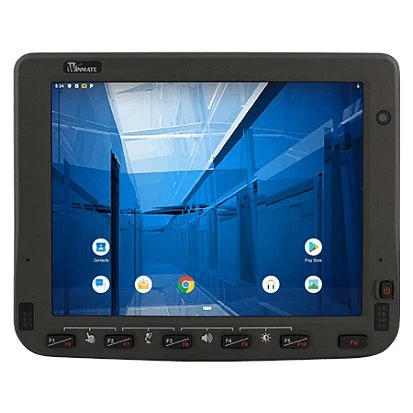

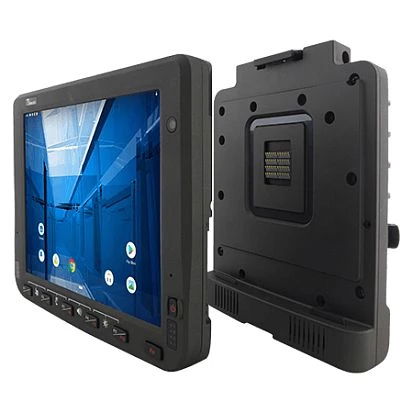

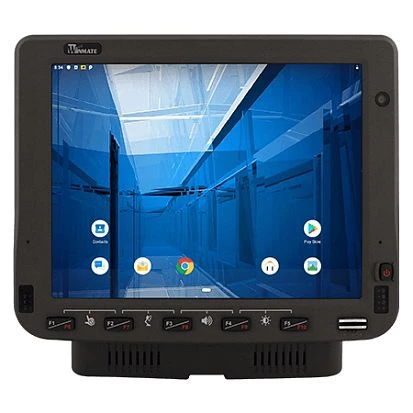

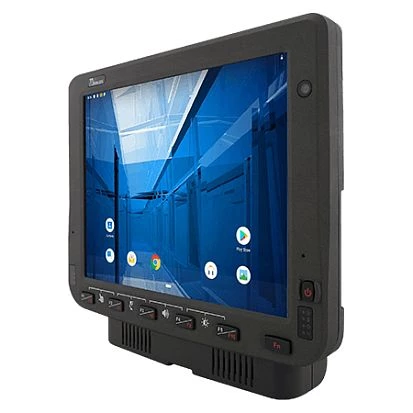

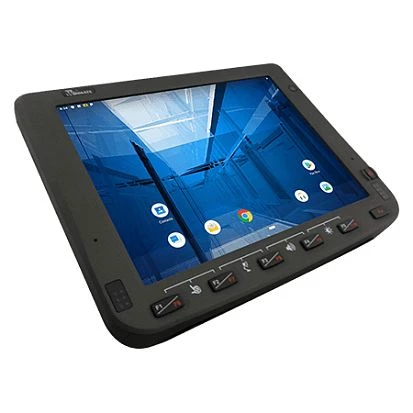

FM10Q

FM10Q

Winmate
SKU: 56786500
Vehicle Fanless Computer, IP65, 10.4" TFT LCD, PCAP, 400nits, Qualcomm Snapdragon 660 CPU, 3GB LPDR3L, 32G eMMC, 2xCOM, 3xUSB, 1xSIM, 1xPoE LAN, 1x micro SD, 1xCANbus, WiF, Bluetooth, GPS, Cam 2MP, 10-60V, Android 9
Price on request
Available
Available

Construction
Construction Chassis
Magnesium Alloy
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Qualcomm Snapdragon 660
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR3
Default on Board Memory
3 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
2
USB v3.x
1
Industrial Interfaces
CAN Port
1
Drive interfaces
SD Slots
1
Extension Slots
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G, 4G
Additional Functions
GPS
GPS
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xDB9, RJ45 Ethernet, DC Input, SIM Card Slot, SD card slot
System Power Input
Input Voltage DC
10..60 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
268 mm
Height
214 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
1.7 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Magnesium Alloy
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Qualcomm Snapdragon 660
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR3
Default on Board Memory
3 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
2
USB v3.x
1
Industrial Interfaces
CAN Port
1
Drive interfaces
SD Slots
1
Extension Slots
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G, 4G
Additional Functions
GPS
GPS
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xDB9, RJ45 Ethernet, DC Input, SIM Card Slot, SD card slot
System Power Input
Input Voltage DC
10..60 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
268 mm
Height
214 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
1.7 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Magnesium Alloy
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Qualcomm Snapdragon 660
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR3
Default on Board Memory
3 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
2
USB v3.x
1
Industrial Interfaces
CAN Port
1
Drive interfaces
SD Slots
1
Extension Slots
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G, 4G
Additional Functions
GPS
GPS
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xDB9, RJ45 Ethernet, DC Input, SIM Card Slot, SD card slot
System Power Input
Input Voltage DC
10..60 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
268 mm
Height
214 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
1.7 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Magnesium Alloy
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Qualcomm Snapdragon 660
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR3
Default on Board Memory
3 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
2
USB v3.x
1
Industrial Interfaces
CAN Port
1
Drive interfaces
SD Slots
1
Extension Slots
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G, 4G
Additional Functions
GPS
GPS
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xDB9, RJ45 Ethernet, DC Input, SIM Card Slot, SD card slot
System Power Input
Input Voltage DC
10..60 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
268 mm
Height
214 mm
Depth
35 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMS
EN 61000-4-2
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
1.7 kg
Gross Weight
2.5 kg

Documentation
Datasheet FM10Q
Documentation
Datasheet FM10Q
Documentation
Datasheet FM10Q
Documentation
Datasheet FM10Q

Get a Quote

Winmate
SKU: 56786500
FM10Q
FM10Q
FM10Q
FM10Q
FM10Q
