FM08-HT

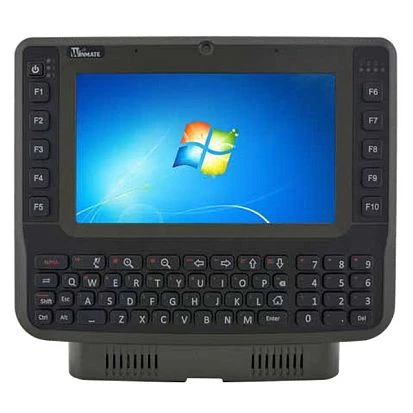

FM08-HT

Winmate
SKU: 56534200
Vehicle Fanless Panel PC 8" with Defroster, resistive touch screen, Intel Atom E3845 1.91GHz, 4GB DDR3L, 64GB M.2 SSD, 2xCOM, 2xUSB, LAN, 1xSIM, 1xSD card, 1xCANbus, WLAN, BT, GPS, camera 2MP, 10-60VDC In, 3800mAh Li-Polymer Bat.,w/ vehicle docking
Price on request
Available
Available

Construction
Construction Chassis
Magnesium Alloy
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
800x480 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n, 802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
M.2
1
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Extension Slots
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G, 4G
Additional Functions
GPS
GPS
LED / Controls
LED
1xOn/Off LED
Controls
On/Off, KeyPad, Control Buttons
Connectors
Connectors
4xDB9, RJ45 Ethernet, DC Input, SIM Card Slot, SD card slot
System Power Input
Input Voltage DC
10..60 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 7 Professional
Operating System Installed
Windows Embedded Standard 7
Dimensions and weight
Width
268 mm
Height
214 mm
Depth
81 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
