FM07E

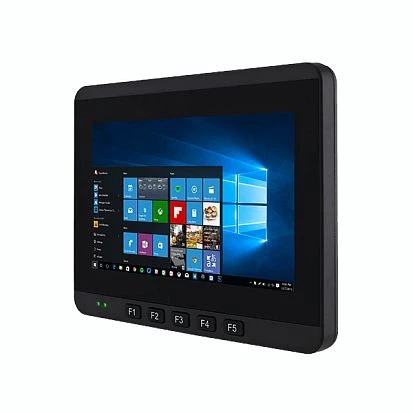

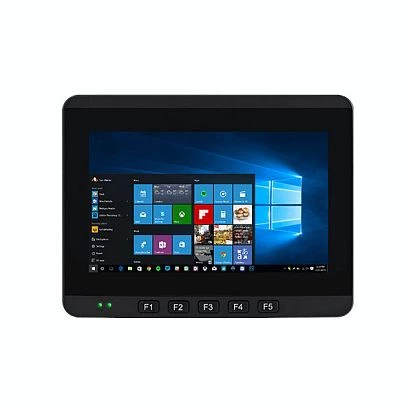

FM07E

Winmate
SKU: 09905500
7" Vehicle Fanless Panel PC, 1024x600, P-CAP Touch, IP65, Intel Celeron N6210 1.2GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, 1xGbE M12 LAN, WiFi/BT, GPS, 1xDB9 for 2xUSB, 1xCOM, 2xCAN, 1x8-bit DIO, 1xSIM, Audio, TPM 2.0, Win 10 IoT, 9-36VDC-in, -20..60C
Price on request
Available
Available

Construction
Construction Chassis
Magnesium Alloy
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Brightness
1000 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6210
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
USB Total
2
USB 2.0
2
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
2
Extension Slots
Total
1
M.2
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, Function Keys
Connectors
Connectors
2xDB9, SIM Card Slot, DB15 CAN Bus, M12 DC-in, M12 LAN
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
190 mm
Height
146 mm
Depth
40 mm
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.25 kg
Gross Weight
1.8 kg
