FM07A

FM07A

Winmate
SKU: 56854300

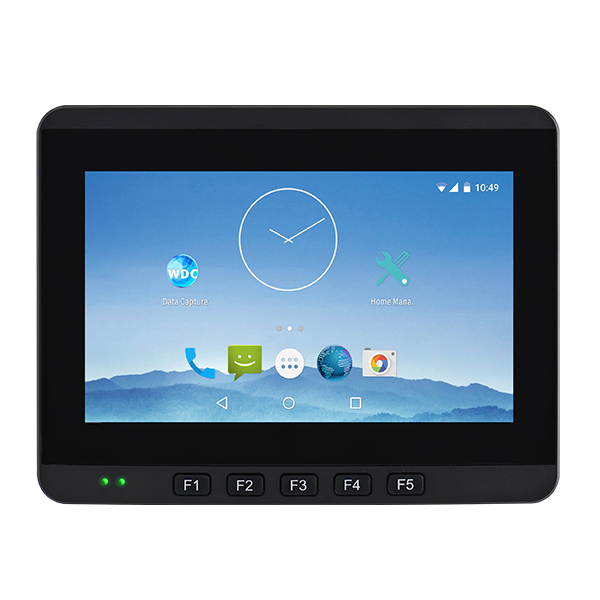

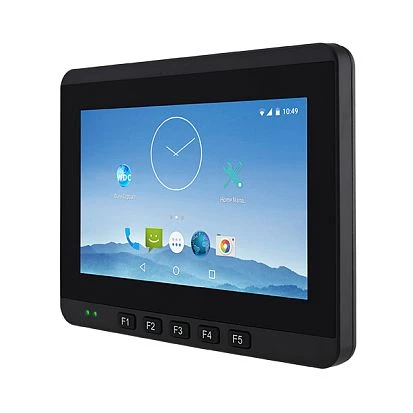

Vehicle Mounted Computer 7" TFT LCD, P-Cap multi-touch, Freescale i.MX 6 Dual Core 1 GHz, 1GB DDR3L, 16GB eMMC, 1xRS232, 2xUSB, 1xGbE LAN, 1xSIM, 5xDI, 3xDO, 2xCANbus, WLAN, BT 4.0, GPS, 9...24V DC, OS Android 6.0, -20...+60C, IP65
Price on request
Available
Available

Construction
Mounting Configuration
Wall VESA 75
Protection Level of Chassis
IP65
Type
Fanless
Display
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
1000 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Freescale i.MX6 Duallite
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
2
Industrial Interfaces
CAN Port
2
Extension Slots
SIM Card slots
1
Additional Functions
GPS
GPS
Connectors
Connectors
RJ45 Ethernet, 2xUSB, SIM Card Slot, 2xDB9 CAN
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Installed
Android
Dimensions and weight
Width
189.93 mm
Height
145.93 mm
Depth
39.8 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-STD-810G Method 514.6 Procedure I, 1.60/ 1.96/ 2.18 g rms for XYZ/ 5-500 Hz
Shock
MIL-STD-810G Method 516.6 Procedure I, 30 g for 18 ms, 300 m/s2
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
