FGSW-2622VHP

FGSW-2622VHP

Planet
SKU: 57567000

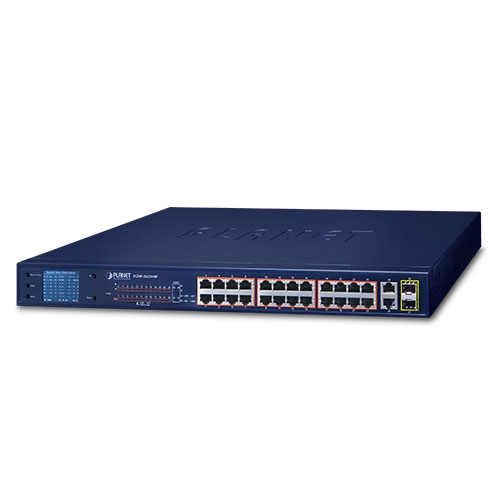

Ethernet Switch with LCD PoE Monitor 24x10/100 Base-TX PoE Ports, 2x1G TP Ports, 2xSFP, 100..240V AC, -10..+60C Operating Temperature
Price on request
Available
Available

Ethernet
10/100 Mbit/s
24
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
24
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Connectors
Connectors
RJ45
Dimensions and weight
Width
233 mm
Depth
440 mm
Height
44 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.4 kg
Gross Weight
3.9 kg
Ethernet
10/100 Mbit/s
24
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
24
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Connectors
Connectors
RJ45
Dimensions and weight
Width
233 mm
Depth
440 mm
Height
44 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.4 kg
Gross Weight
3.9 kg
Ethernet
10/100 Mbit/s
24
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
24
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Connectors
Connectors
RJ45
Dimensions and weight
Width
233 mm
Depth
440 mm
Height
44 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.4 kg
Gross Weight
3.9 kg
Ethernet
10/100 Mbit/s
24
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
24
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
Connectors
Connectors
RJ45
Dimensions and weight
Width
233 mm
Depth
440 mm
Height
44 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.4 kg
Gross Weight
3.9 kg

Documentation
FGSW-2622VHP-Datahseet.pdf
Documentation
FGSW-2622VHP-Datahseet.pdf
Documentation
FGSW-2622VHP-Datahseet.pdf
Documentation
FGSW-2622VHP-Datahseet.pdf
