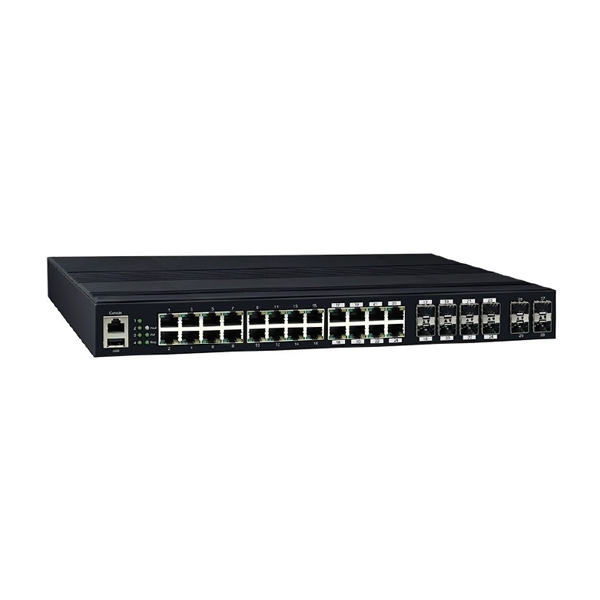

IS-RG928-8C-4F-2A
ISON
SKU: 80295100
Industrial L3 Managed Switch, IP30, 16x10/100/1000Base-TX, 4x1000M SFP, 8x10/100/1000Base-TX Combo ports, 1xUSB, 1xDI, 2x 90..264 VAC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
24
10/100/1000 Mbit/s
24
SFP 100/1000 Mbit/s Ports
4
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
9.2 kB
Max. Number of VLANs
256
IGMP Groups
512
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS, MSTP, RSTP
Security Protocols
SSH, RADIUS, SSL, TACACS+
IEEE Standard
ieee_802.3ae, IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
1
System Power Input
Input Voltage AC
90..264 V
Power Supply Reserve input Voltage AC
90..264 V
Construction
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
440 mm
Depth
43 mm
Height
331 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.8 kg
Gross Weight
5.3 kg
