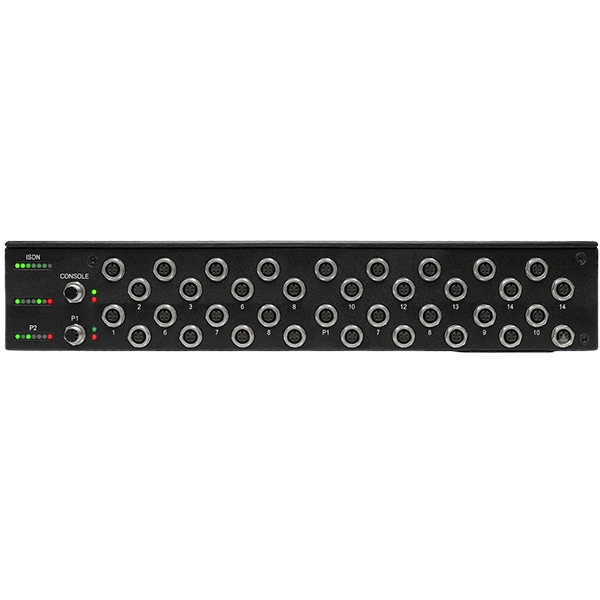

IS-RG636P-M12

SKU: 80296400

Industrial Managed Switch, IP40, 36x10/100/1000Base-TX M12 with 24xPoE+, 110 VDC, Operating Temperature -40..75 C

Price on request

Ethernet

Total Ethernet

10/100/1000 Mbit/s

Type 10/100/1000 Mbit/s

M12

PoE+ 10/100/1000 Mbit/s

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

9.2 kB

Max. Number of VLANs

4094

IGMP Groups

512

Supported Protocols

Managment Protocols

DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

ERPS, MSTP, RSTP

Security Protocols

SSH, RADIUS, SSL, TACACS+

IEEE Standard

ieee_802.3ae, IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)

Construction

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP40

Dimensions and weight

Width

440 mm

Depth

88 mm

Height

352 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

Rolling Stock

EN 45545-2

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

7.3 kg

Gross Weight

7.8 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

Type 10/100/1000 Mbit/s

M12

PoE+ 10/100/1000 Mbit/s

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

9.2 kB

Max. Number of VLANs

4094

IGMP Groups

512

Supported Protocols

Managment Protocols

DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

ERPS, MSTP, RSTP

Security Protocols

SSH, RADIUS, SSL, TACACS+

IEEE Standard

Construction

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP40

Dimensions and weight

Width

440 mm

Depth

88 mm

Height

352 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

Rolling Stock

EN 45545-2

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

7.3 kg

Gross Weight

7.8 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

Type 10/100/1000 Mbit/s

M12

PoE+ 10/100/1000 Mbit/s

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

9.2 kB

Max. Number of VLANs

4094

IGMP Groups

512

Supported Protocols

Managment Protocols

DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

ERPS, MSTP, RSTP

Security Protocols

SSH, RADIUS, SSL, TACACS+

IEEE Standard

Construction

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP40

Dimensions and weight

Width

440 mm

Depth

88 mm

Height

352 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

Rolling Stock

EN 45545-2

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

7.3 kg

Gross Weight

7.8 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

Type 10/100/1000 Mbit/s

M12

PoE+ 10/100/1000 Mbit/s

Switch Properties

MAC Table Size

32000

Jumbo Frame Size

9.2 kB

Max. Number of VLANs

4094

IGMP Groups

512

Supported Protocols

Managment Protocols

DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, SNMP, NTP, RMON, TFTP, LACP, CoS, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

ERPS, MSTP, RSTP

Security Protocols

SSH, RADIUS, SSL, TACACS+

IEEE Standard

Construction

Mounting Configuration

19" Rackmount

Protection Level of Chassis

IP40

Dimensions and weight

Width

440 mm

Depth

88 mm

Height

352 mm

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Standards and Certifications

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

Rolling Stock

EN 45545-2

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

7.3 kg

Gross Weight

7.8 kg
