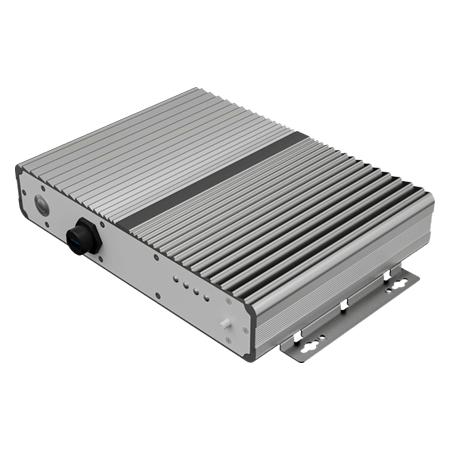

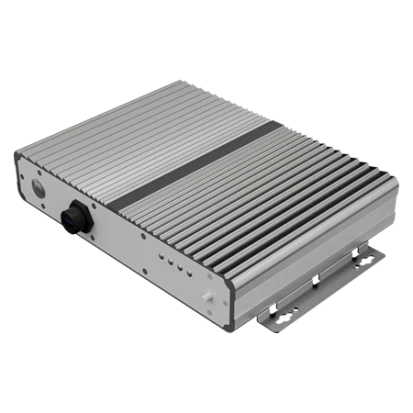

F65EAC-IT32
Winmate
SKU: 10655500
Fanless Rugged Box PC, EAC-Series, Full IP65, Intel Core i5-1135G7 2.4GHz CPU, 4GB DDR4 RAM, 128GB NVME SSD, M21 HDMI, M12 Connectors: (2xGbE LAN, 1xCOM, 2xUSB 2.0, 1xUSB Type A, DC-in), 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, TPM 2.0, 9-36VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP65
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
USB Total
3
USB 2.0
2
USB v3.x
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, LAN LED, SSD LED
Connectors
Connectors
M12, M12 USB, M12 DC-in, M12 HDMI, 2x8-pin M12 USB, 2xM12 LAN
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
260.4 mm
Height
50.1 mm
Depth
193 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5Hz~500Hz / 1Grms / 3 axis
Shock
15G, 11ms duration
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
3 kg
Gross Weight
3.8 kg
