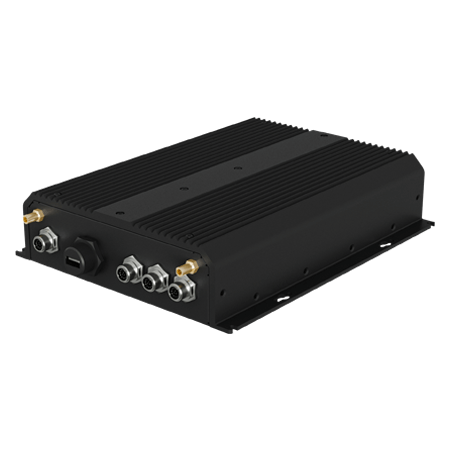

F65EAC-IAD32
Winmate
SKU: 80088600
Fanless Rugged EAC-Series Box-PC, IP65 Full, Intel Core i5-1235U 4.4GHz CPU, 8GB DDR5 RAM, 256GB NVME SSD, Waterproof Connectors: (HDMI, 1xUSB Type A), M12 Connectors: (GbE LAN, 2xUSB 2.0, 1xCOM, DC-in), 1xM.2 2230 Key-E, TPM 2.0, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Rubber, Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP65
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR5
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED, LAN LED, SSD LED
Controls
On/Off
Connectors
Connectors
HDMI, 1xUSB, M12 USB, M12 DC-in, M12 LAN, M12 COM
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
250 mm
Height
55 mm
Depth
205 mm
Operating Conditions
Operating Temperature
-10..45 °C
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3 kg
Gross Weight
3.8 kg
