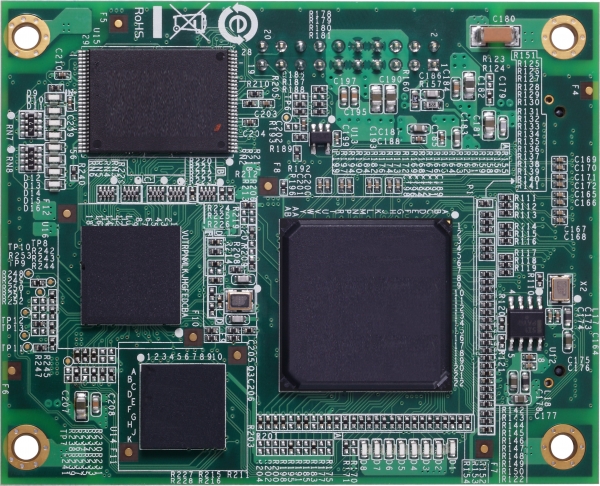

EOM-G103-PHR-PTP
MOXA
SKU: 06770500
IEC 62439-3 managed redundancy module with 3 SGMII pinouts reserved for 2 IEC 62439-3 ports and 1 standard Ethernet port, -40 to 85C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
Switch Properties
Managed
Yes
Supported Protocols
Managment Protocols
IEEE 1588 PTP V2 (hardware-based)
Reservation protocols
HSR, PRP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage DC
3..3 V
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Dimensions and weight
Width
80 mm
Depth
65 mm
Height
1.6 mm
Operating Conditions
Operating Temperature
-40..60 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Power Automation
IEC 62439-3
Dimensions
Gross Weight
0.4 kg
