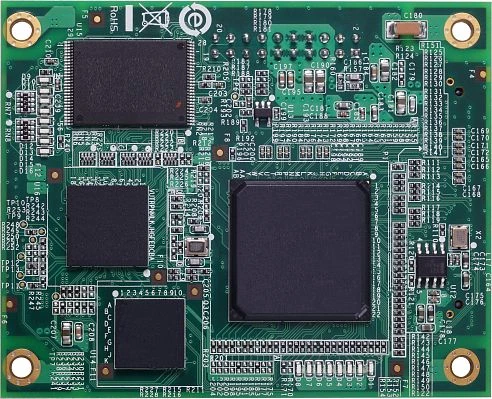

EOM-G103-PHR-PTP-ST
MOXA
SKU: 06770600
IEC 62439-3 managed redundancy module with 3 SGMII pinouts reserved for 2 IEC 62439-3 ports and 1 standard Ethernet port, -40 to 85C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
Switch Properties
Managed
Yes
Supported Protocols
Managment Protocols
IEEE 1588 PTP V2 (software based)
Reservation protocols
HSR, PRP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Input Voltage DC
3..3 V
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Dimensions and weight
Width
80 mm
Depth
65 mm
Height
1.6 mm
Operating Conditions
Operating Temperature
-40..60 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Power Automation
IEC 62439-3
Dimensions
Gross Weight
0.4 kg
