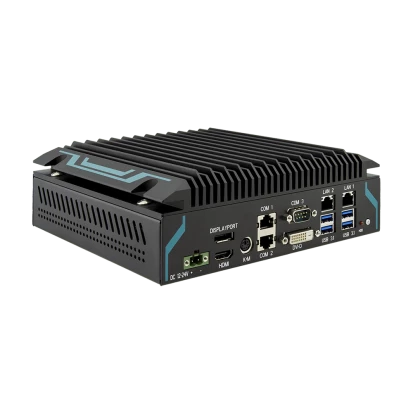

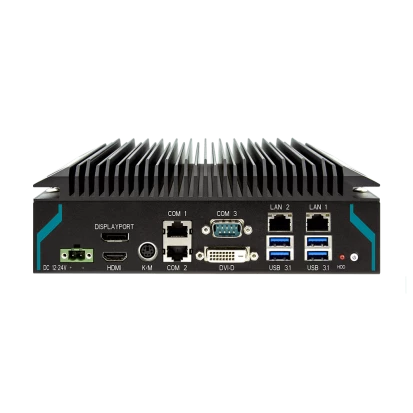

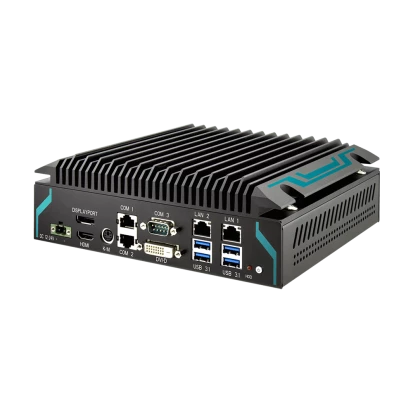

ELIT-1930-M

ELIT-1930-M

Arbor
SKU: 57839000
Fanless Digital Signage Player, LGA1151 Socket, Intel 8/9th Gen Core i9/i7/i5/i3 CPU, Q370 Chipset, Up to 32GB DDR4 RAM, DP/HDMI/DVI-D, 2xGbE LAN, 3xRS232/485, 4xUSB 3.1, PS/2, 1xM.2 2280, 1xM.2 2230, 1xM.2 2242, SIM, Audio, 12-24VDC-in, -15..60C
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/485
3
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, DVI-D, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), 2xRJ45 (COM)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
210 mm
Height
190 mm
Depth
70 mm
Operating Conditions
Operating Temperature
-15..60 °C
Humidity
10-95%
Vibration
3 Grms/5~500Hz/random operation
Shock
Operating 40G (11ms), non-operating 80G with M.2 PCIe SSD
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3 kg
Gross Weight
3.5 kg
