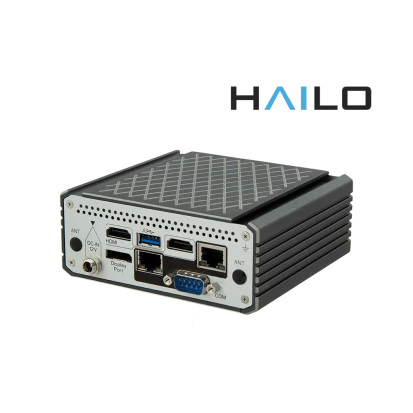

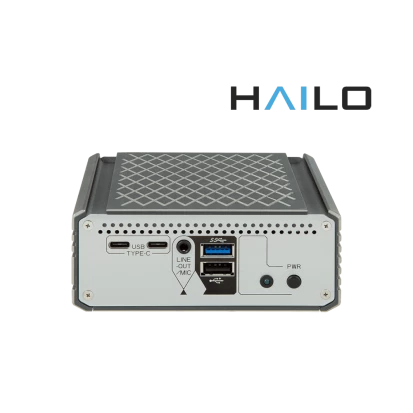

ELIT-1060-M

ELIT-1060-M

Arbor
SKU: 57839100
Fanless Digital Signage Player, Intel Celeron N6210 1.2GHz CPU, Up to 32GB DDR4 RAM, 32GB eMMC, Hailo-8 Optional, DP/2xHDMI, 2x2.5 GbE LAN, 1xRS232/422/485, 2xUSB 3.2, 1xUSB 2.0, 2xUSB 3.2 Type-C, 2xM.2, TPM 2.0, Audio, 12VDC-in, -20..60C
Price on request
Available
Available
System configuration
Price with VAT
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6210
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DisplayPort, 2xHDMI
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
5
USB 2.0
1
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E, 2260 M
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45 Ethernet, 3xUSB, DC Input, Display Port, USB type C
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
118 mm
Height
108 mm
Depth
48 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Vibration
3 Grms/5~500Hz/random operation
Shock
Operating 50G (11ms) with eMMC
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.66 kg
Gross Weight
0.9 kg
