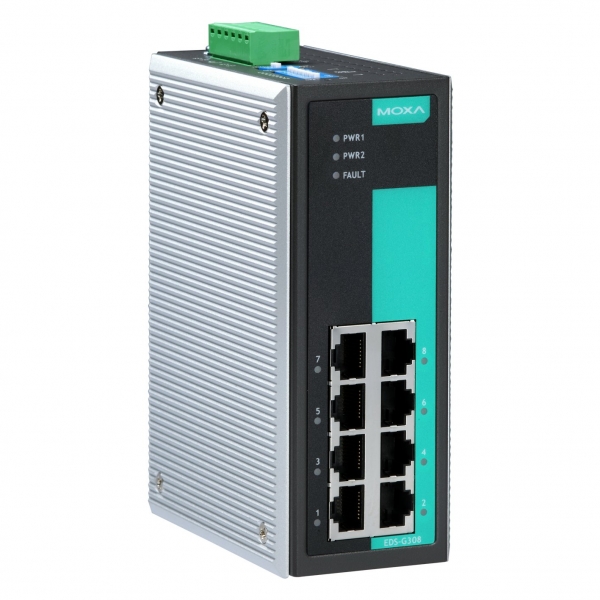

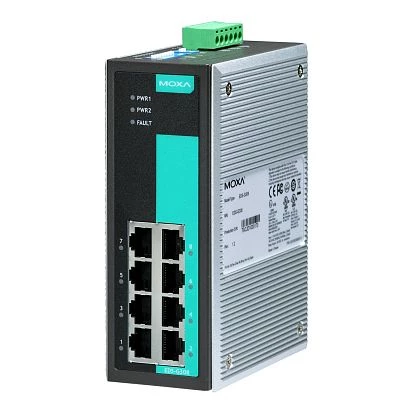

EDS-G308-T

Gigabit switch EDS-G308-T. Ethernet switch EDS-G308-T from MOXA features one ultimate advantage. All 8 communication ports are the combined ports, they conform to the requirements of 10/100/1000 Base TX standards and are suitable for transmission of large data packets at high speed. This allows you to build full-featured Gigabit networks that offer you the communication on the whole new quality level. Moreover, the switch is well protected from drops, shocks, vibrations, electromagnetic exposure and demonstrates stable operation at critical temperatures spanned from 40 to +75 °C. Gigabit switch EDS-G308-T: description and features: Gigabit communication standards: IEEE 802.3ab, IEEE 802.3z for 1000 Base SX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet. Maximum speed: 1250 Mbit/s. Slots: RJ-45. Type of cable: twisted pair, 5/6 category. A wideband signal requires preventing a network from congestion. There is protection against broadcast storms (DIP switch), a Jumbo Frame switch and a relay channel for alarm notifications. There are built-in functions of speed auto negotiation, interface type auto-sensing (Auto MDI/MDI-X), data flow management (802.3x Flow Control). Power consumption: 7.68 W. Input voltage: 9.6…60 V DC. The increased range facilitates the connection. There is a redundant power input and reverse polarity protection. Despite the 8-port design, the metal chassis of IP-30 industrial class features compact size (54х135х105) and can be mounted either on a wall, or on a DIN-rail. Mean time between failures (MTBF standard) is around 40 years. Eight Gigabit ports of the industrial switch by MOXA EDS-G308-T allow you to design highly efficient industrial networks that ensure high speed and throughput, whereas easy configuration of the device makes the operation process light and smooth. Quality and reliability of the model are testified by the certificates on protection, security (UL-508), field-specific certificates on application on transport, in marine industry (DNV, GL, LR, ABS, NK), in oil and gas recovery sector (UL Class I Div. 2, ATEX Zone 2).
