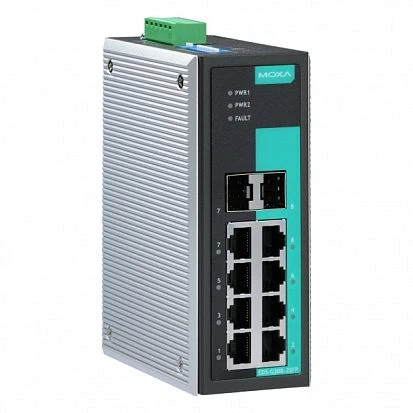

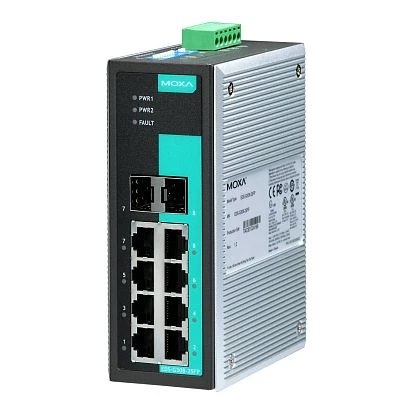

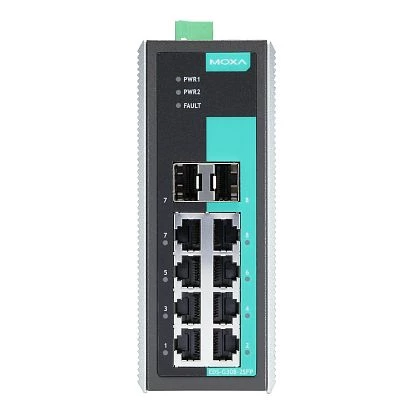

EDS-G308-2SFP

EDS-G308-2SFP switch refers to the unmanaged industrial switches class and differs from the basic model. 2 out of 8 communication ports are Gigabit combined ports that support the speed of 10/100/1000 Mbit/s and have RJ-45 slots (for a twisted pair) and SFP slots - for optic fiber. Such architecture expands the abilities of industrial engineers in the field of large distance data transfer and creation of Gigabit Ethernet networks. From its ancestors the device has inherited the secured reliability and capability of operation in aggressive industrial conditions. MOXA’s switch EDS-G308-2SFP: description and features: The device supports the extended range of IEEE standards. 802.3X secures full-duplex communication and provides compatibility with DIX, 802.3ab secures communication over a twisted pair of the 5th category, 802.3z - Gigabit communication over fiber. High-speed wideband signal requires to protect a network from overloads caused by the wrong configuration or a device failure. The design provides protection against broadcast storms (double-throw switch), as well as a jumbo frame switch. From its ancestors the device has inherited an emergency discrete output channel and a simple system of signal indicators. There is a power redundancy principle implemented (a backup power source will be activated, if the main one gets failed). All components are protected by the metal chassis that features minimum dimensions: 54х135х105. Despite the fanless design, the switch is capable of stable operation at 60 °C (thanks to the elaborate cooling fin system). The device is certified according to UL508 class, the application certificates have been expanded (LR, ABS, NK). The failure-free operation (MTBF) is nearly 40 years, which is 10 years more than that of the basic model. Hence, as to the price to quality ratio, EDS-G308-2SFP is one of the leaders among the 300 series models due to its high-speed ports, sophisticated protection and improved reliability. If you are not looking for the advanced management features, this switch would be a perfect solution for construction of complex industrial networks for operation in contaminated, humid, high temperature and explosive hazardous environments.
