EDS-518A
MOXA
SKU: 03322800
Industrial Managed Redundant Ethernet Switch with 16x 10/100 BaseTx Ports and 2x 10/100/1000 BaseTx Ports, RoHS
Price on request
Available
Available

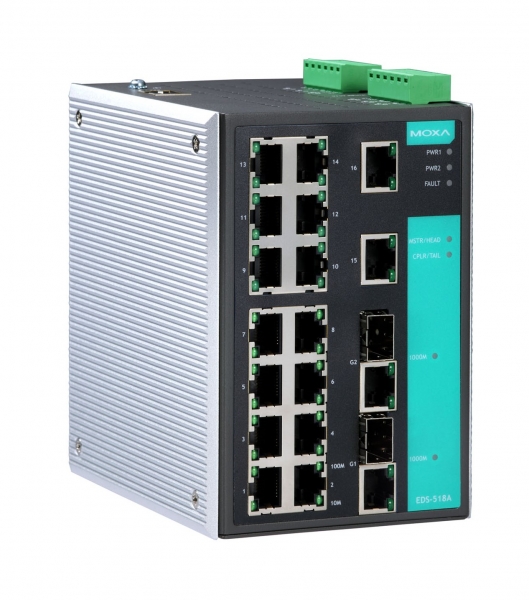

EDS-518A network switch would be perfect for creating very complex industrial Fast Ethernet networks. The device houses 18 communication ports: 16 10/100 Base TX ports with RJ-45 slots and 2 Gigabit combo ports with RJ-45 or SFP slots for optical modules. Such configuration allows integrating large number of devices and connecting them to a remote server or a workstation using optical ports. L2 Ethernet switch EDS-518A by MOXA: description and features: The device supports intelligent functions of control (SNMP v1/v2/v3), monitoring (RMON), planning (VLAN, GVRP), traffic filtration (IGMP, GMRP), prioritizing (QoS). There are new integrated protocols of time synchronization (1588 PTPv2), flexible network connections (802.3ad LACP), network security extension (TACACS+, IEEE 802.1X, HTTPS, and SSH). The device provides several network control modes using user-friendly web interface, command line interface (CLI), Telnet console, Windows utility, and ABC-01 backup configurator. There are 2 isolated digital inputs for automation devices and 2 discrete output relay channels for prompt notification about power supply interruptions or communication disruptions. Taking into account its opportunities, the device can be characterized by good power supply efficiency and consumes 12.24 W (0.5 A at 24 V). The power supply redundancy secures uninterruptible operation. The fanless metal housing that rates IP30 (94х135х143) protects the electronic components from solid particles ingress, shocks and vibrations (МЭК-60068/IEC-60068). The device is available in wall and DIN-rail mounting configurations. Mean time between failures (MTBF) - 27 years. Thanks to multiple ports and 2 Gigabit paths, EDS-518A from MOXA can play the main role in any scalable industrial network. The device features high level of protection, whereas, the field-specific certificates (DNV, GL, NK, Class I Div. 2, ATEX Zone 2) allow you to use this switch on transport, in marine industry, in explosion hazardous environment of oil and gas industry.
EDS-518A network switch would be perfect for creating very complex industrial Fast Ethernet networks. The device houses 18 communication ports: 16 10/100 Base TX ports with RJ-45 slots and 2 Gigabit combo ports with RJ-45 or SFP slots for optical modules. Such configuration allows integrating large number of devices and connecting them to a remote server or a workstation using optical ports. L2 Ethernet switch EDS-518A by MOXA: description and features: The device supports intelligent functions of control (SNMP v1/v2/v3), monitoring (RMON), planning (VLAN, GVRP), traffic filtration (IGMP, GMRP), prioritizing (QoS). There are new integrated protocols of time synchronization (1588 PTPv2), flexible network connections (802.3ad LACP), network security extension (TACACS+, IEEE 802.1X, HTTPS, and SSH). The device provides several network control modes using user-friendly web interface, command line interface (CLI), Telnet console, Windows utility, and ABC-01 backup configurator. There are 2 isolated digital inputs for automation devices and 2 discrete output relay channels for prompt notification about power supply interruptions or communication disruptions. Taking into account its opportunities, the device can be characterized by good power supply efficiency and consumes 12.24 W (0.5 A at 24 V). The power supply redundancy secures uninterruptible operation. The fanless metal housing that rates IP30 (94х135х143) protects the electronic components from solid particles ingress, shocks and vibrations (МЭК-60068/IEC-60068). The device is available in wall and DIN-rail mounting configurations. Mean time between failures (MTBF) - 27 years. Thanks to multiple ports and 2 Gigabit paths, EDS-518A from MOXA can play the main role in any scalable industrial network. The device features high level of protection, whereas, the field-specific certificates (DNV, GL, NK, Class I Div. 2, ATEX Zone 2) allow you to use this switch on transport, in marine industry, in explosion hazardous environment of oil and gas industry.
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032 Class A
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL, NK
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.15 kg
Gross Weight
2.15 kg
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032 Class A
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL, NK
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.15 kg
Gross Weight
2.15 kg
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032 Class A
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL, NK
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.15 kg
Gross Weight
2.15 kg
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032 Class A
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL, NK
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.15 kg
Gross Weight
2.15 kg
