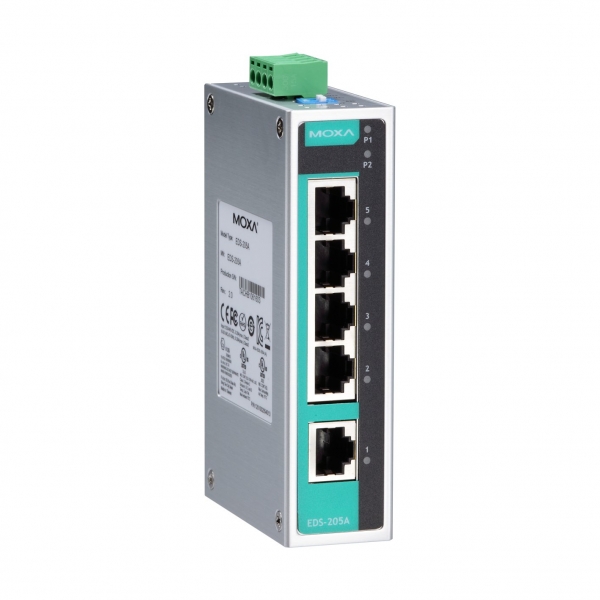

EDS-205A-T

Unlike basic series models, EDS-205A-T model is provided in an industrial grade metal chassis (protection according to IP30), a redundant power supply circuit and a reliable data security system. The switch houses 5 Ethernet ports of 10/100 Base TX standard with RJ-45 slots. The design peculiarities allow the uninterruptible switch operation under temperatures ranged from -40 to +75 °C. Industrial switch EDS-205A-T: description and features: Store and Forward technology allows the device to perform frame transmission only after error checking is complete. The large MAC address table (up to 1000) increases the network determination. DIP switches can activate protection against broadcast storms and prevent network overloads, thus, improving the communication quality. Input voltage: 12…45 V DC. Power consumption: 6.24 W (260 mA at 24 V). The redundant power input secures stable operation, even if the main power source fails. The electronic components are protected from shocks and vibrations (МЭК-60068/IEC 60068), electromagnetic exposures and impulse noise (EN-55022, EN-61000, FCC) by the metal housing. This switch can be deployed in humid, high temperature and explosion hazardous environments at production facilities, on land transport (NEMA TS2), railway transport (EN-50121) and marine transport (DNV, GL, LR, ABS, NK), as well as in oil and gas recovery industry (UL Class I Div. 2, ATEX Zone 2). Mean time between failures (MTBF) - 3.5 centuries. Considering the traditional reliability of devices of 'A' series, the switch would be irreplaceable when constructing flexible networks in severe production conditions. Moreover, the device belongs to a low-budget segment, so the affordable price of EDS-205A-T shall not affect your investment budget. The package includes a detailed manual on device connection and configuration.
