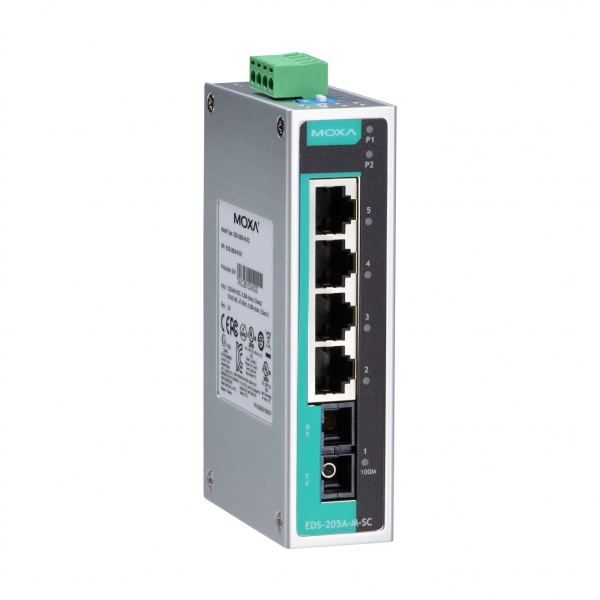

EDS-205A-S-SC

Unmanaged switch EDS-205A-S-SC. Industrial switch EDS-205A-S-SC would be perfect for consolidation of small segments of industrial network and for transmission of data over large distances. The chassis design provides 4 high speed Ethernet ports of 10/100 Base TX standard with RJ-45 slots and 1 port of 100 BaseFX standard (SC slot) to transmit data over single-mode optical fiber at the distance of up to 40 km. The switch supports all required modern protocols and operation standards, the electronic components are protected by the industrial grade housing. There is also a dual power supply circuit and broadcast storm protection. Network switch EDS-205A-S-SC: description and features: Interface type auto detection and negotiation is provided by means of Auto MDI/MDI-X. Protection against broadcast storm is ensured using DIP switches that prevents networks overloads and improves communication stability. The wide input voltage range (DC 9.6…60) allows the switch to be incorporated into nearly any network. Moreover, the switch consumes only 2.64 W (0.11 A at 24 V). The device is protected from drops, shocks and vibrations (МЭК-60068/ IEC 60068), voltage spikes, static discharges and impulse interference (EN-55022, EN-61000-4, FCC). The switch can be applied in nearly any industrial sphere - oil and gas recovery, marine vessels, railway (including traffic management), which is testified by numerous compliance certificates. EDS-205A-S-SC by MOXA supports 2 communication modes (full-duplex, half-duplex), provides hardware and software protection. Its optical port will help to transmit data over large distances. The device reliability is confirmed by unbelievable mean time between failures (MTBF) of 350 years. Considering the assembly quality and complete protection from environmental exposure, the device can be used in nearly any industrial sphere. The switch price differs greatly from that of a basic model due to an expensive single-mode fiber optic communication port.
