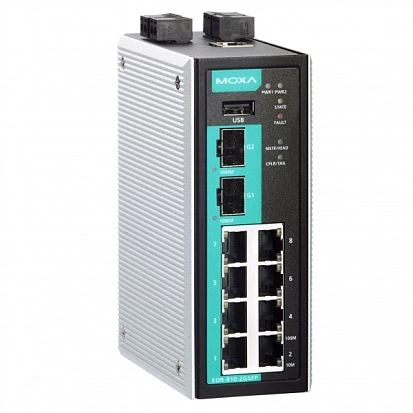

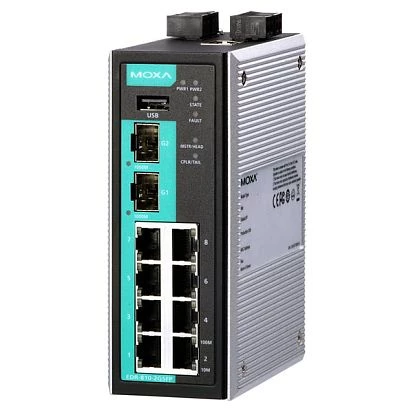

EDR-810-VPN-2GSFP-T
MOXA
SKU: 66315000
8+2G SFP industrial multiport secure router with Firewall/NAT/VPN, -40 to 75C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
SFP 100/1000 Mbit/s Ports
2
Switch Properties
Switch Level
Layer 3
Max. Number of VLANs
16
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, QoS, DDNS, SNTP, TFTP, CoS, Proxy ARP, IGMPv1/v2/v3, NTP Server/Client
Reservation protocols
STP, Turbo Ring, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, IPSec, L2TP, NAT, Firewall, IP Address Filtering, VPN
IEEE Standard
IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
1
Type
Wet contact
Level of Logic "0"
-30~3 V
Level of Logic "1"
13~30 V
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45), USB type A
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D
Rolling Stock
EN 50121-4
Automotive
NEMA TS2
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.83 kg
Gross Weight
1.13 kg
