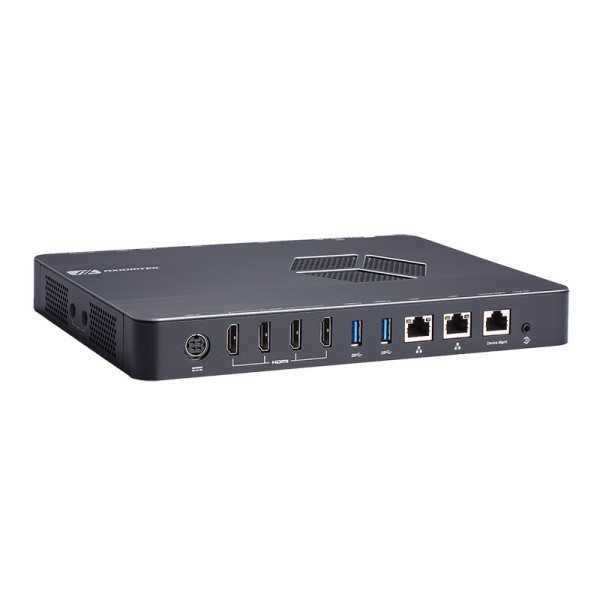

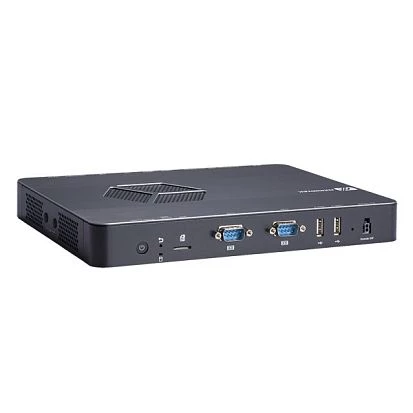

DSP600-211-V1605B

DSP600-211-V1605B

AXIOMTEK
SKU: 08626700
Digital Signage Player, AMD Ryzen Embedded V1605B, DDR4, 4xHDMI 2.0, 2xGbE LAN, 2xRS-232, 2xUSB 3.1, 2xUSB 2.0, 2xM.2 Key-M, 1xM.2 Key-E, 1xM.2 Bey-B, DIM, Audio Line-out
End-of-life product
754,24 €
archive price

Construction
Mounting Configuration
Desktop
CPU
Processor Installed
AMD Ryzen V1605B
CPU Support Type
AMD
Max CPU frequency
3.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
M.2
4
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, Line Out, RJ45 (Console), 4xHDMI
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
DC-DC, Li-battery Pack
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
250 mm
Height
35 mm
Depth
182.8 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
3 Grms with M.2 storage (5 to 500Hz, X, Y, Z directions)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.9 kg
Gross Weight
2.9 kg

Documentation
datasheet_DSP600-211

Request for replacement

AXIOMTEK
SKU: 08626700
DSP600-211-V1605B
DSP600-211-V1605B
