DM2-190H
IEI
SKU: 11601200

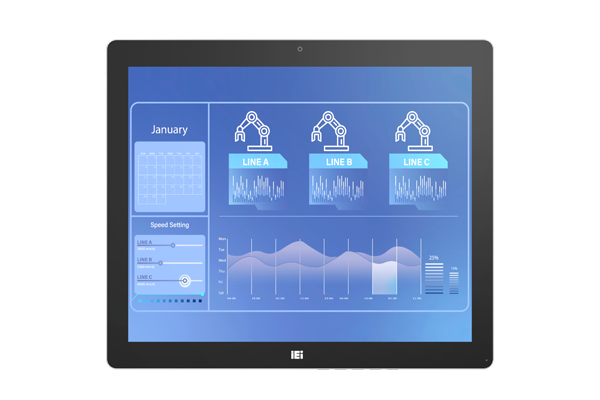

Industrial 19" TFT LCD Monitor, 1280x1024, P-Cap touch, VGA, HDMI, DP, 5xUSB 3.2, speaker, camera, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
450 Cd/m2
Contrast Ratio
1000~1
Input Interface
DisplayPort, HDMI, VGA
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
Power LED
Controls
On/Off
Additional Functions
Camera Frontside
1 MP
Connectors
Connectors
DB15 VGA, HDMI, 5xUSB, Line Out, Display Port
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
9..36 V
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions and weight
Width
424.5 mm
Height
361.57 mm
Depth
51.2 mm
Dimensions
Net Weight
0.5 kg
Gross Weight
0.7 kg
