DM-F24A/PC
IEI
SKU: 08190900

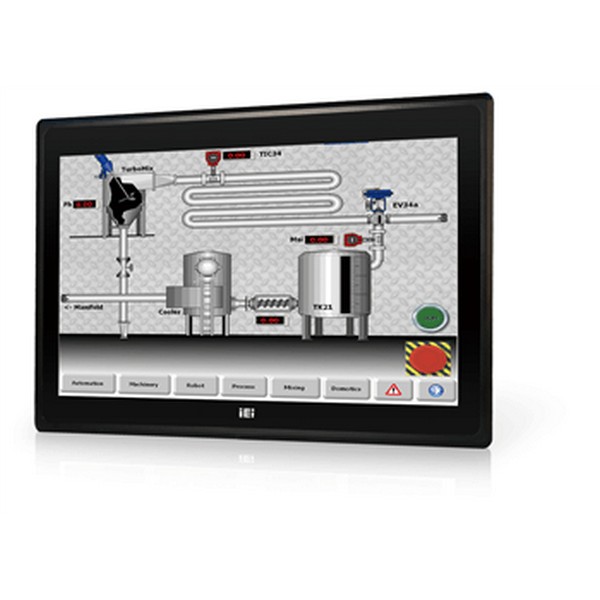

Industrial 23.8" LCD Monitor, Aluminium Front Panel, IP65 Front Protection, 1920x1080 Full HD, Brightness 250cd/m2, Projected capacitive Multi-Touch Screen, 1xVGA, 1xDP, 1xHDMI, 1xUSB 2.0, 1xRS-232, 9-36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
DisplayPort, HDMI, VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
KeyPad
Connectors
Connectors
DB15 VGA, HDMI, DC Input, Display Port, Console Port USB, Terminal block
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-10..50 °C
Dimensions and weight
Width
600 mm
Height
382 mm
Depth
49.4 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
11.1 kg
Gross Weight
11.1 kg
