DM-F12A/R
IEI
SKU: 08191000
Industrial 12" LCD Monitor, Aluminium Front Panel, IP65 Front Protection, 1024x768 XGA, Brightness 600cd/m2, Resistive Touch Screen, 1xVGA, 1xDP, 1xHDMI, 1xUSB 2.0, 1xRS-232, 9-36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, 19" Rackmount, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
12 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
600 Cd/m2
Contrast Ratio
700~1
Input Interface
DisplayPort, HDMI, VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
KeyPad
Connectors
Connectors

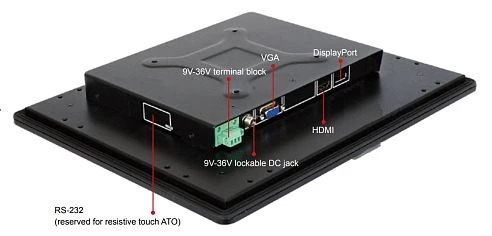

DB15 VGA, HDMI, DC Input, Display Port, Terminal block, Console Port RS-232 (DB9M)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
322.2 mm
Height
262.2 mm
Depth
40.5 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.6 kg
Gross Weight
4.6 kg
