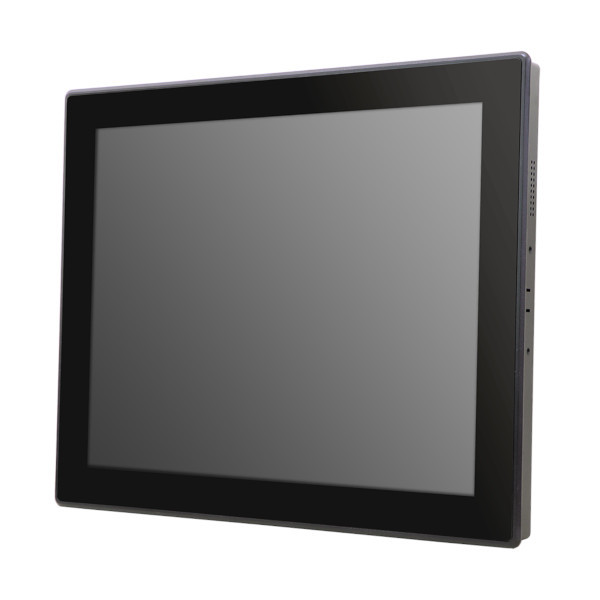

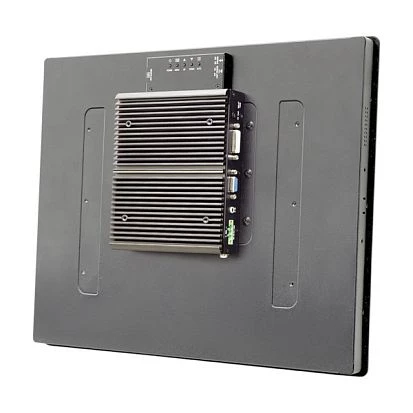

DM-117P/VM-2000
Arestech
SKU: 57255000
17" SXGA Modular Touch Monitor, 1280x1024, 350 cd/m2, IP65 Front, PCAP touch,1xVGA, 1xDVI, 1xDP, 1xUSB/COM touch interface, 9..+48VDC-in, -10..60C Operating temperature
Price on request
Available
Available
Construction
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Interface
RS-232, USB
Connectors
Connectors
DVI, DB15 VGA, DC Input, Display Port
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Dimensions and weight
Width
407 mm
Height
338.7 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6 kg
Gross Weight
8 kg
Construction
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Interface
RS-232, USB
Connectors
Connectors
DVI, DB15 VGA, DC Input, Display Port
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Dimensions and weight
Width
407 mm
Height
338.7 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6 kg
Gross Weight
8 kg
Construction
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Interface
RS-232, USB
Connectors
Connectors
DVI, DB15 VGA, DC Input, Display Port
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Dimensions and weight
Width
407 mm
Height
338.7 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6 kg
Gross Weight
8 kg
Construction
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Interface
RS-232, USB
Connectors
Connectors
DVI, DB15 VGA, DC Input, Display Port
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Dimensions and weight
Width
407 mm
Height
338.7 mm
Depth
69 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6 kg
Gross Weight
8 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
