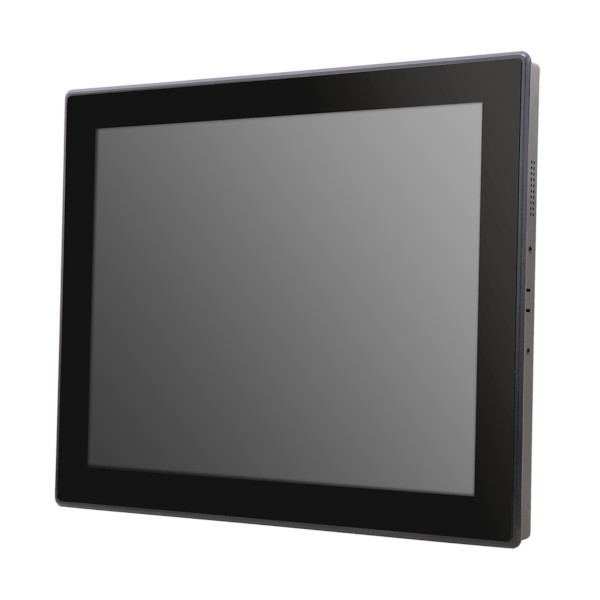

DM-115P/PM-2000
Arestech
SKU: 57255300
15" TFT LCD Fanless Panel PC, 1024x768, 350 cd/m2, IP65 Front, PCAP touch, Intel Celeron J1900 2.0 GHz, up to 8GB DDR3L, 1x 2.5" SATA drive bay, CFast, 5xUSB, 2xLAN, 1xVGA, 1xDP, 2xCOM, 8xDIO, Audio, 9-48 VDC-in
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
2500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI, DB15 VGA, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, 4xUSB (4-pin), 10-pin connector, Jack 3.5
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
377 mm
Height
301 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg
