DHSSL-16GD09BC1SCA

DHSSL-16GD09BC1SCA

InnoDisk
SKU: 09484400

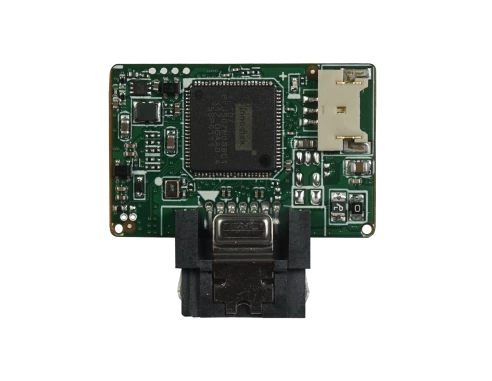

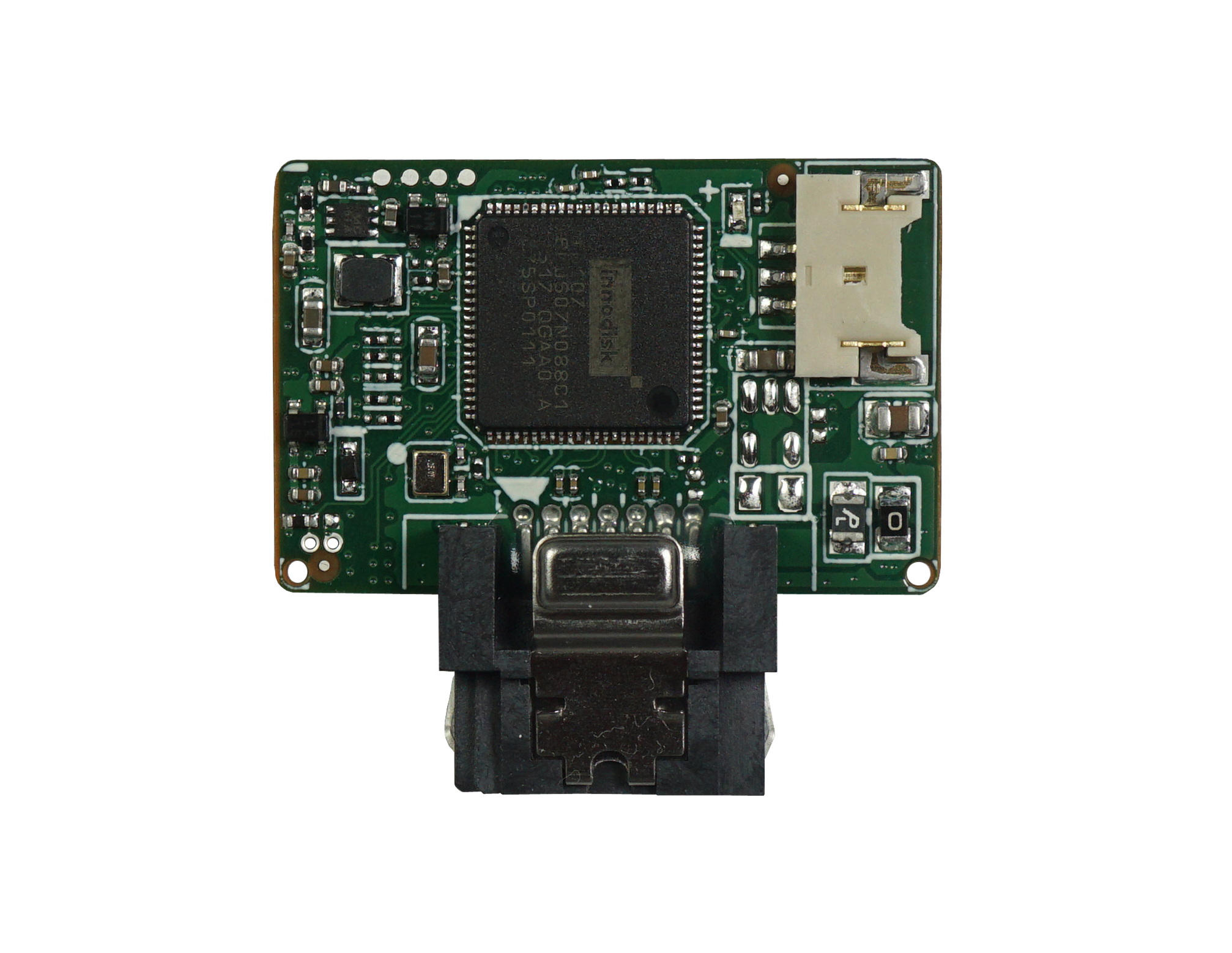

16GB Innodisk SATADOM-SL 3IE3 V2 with Pin8 VCC Supported and power cable, Standard Temperature 0..+ C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
8-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
iSLC
Capacity
16 GB
Transfer Rate Maximum Read
120 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
173 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
8-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
iSLC
Capacity
16 GB
Transfer Rate Maximum Read
120 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
173 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
8-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
iSLC
Capacity
16 GB
Transfer Rate Maximum Read
120 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
173 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
8-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
iSLC
Capacity
16 GB
Transfer Rate Maximum Read
120 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
173 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G@7~2000Hz
Shock
1500G@0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg

Documentation
Innodisk_SATADOM-SL_3IE3_V2_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3IE3_V2_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3IE3_V2_Datasheet.pdf
Documentation
Innodisk_SATADOM-SL_3IE3_V2_Datasheet.pdf
