DESSV-32GD09BW1SCA

SKU: 10035100

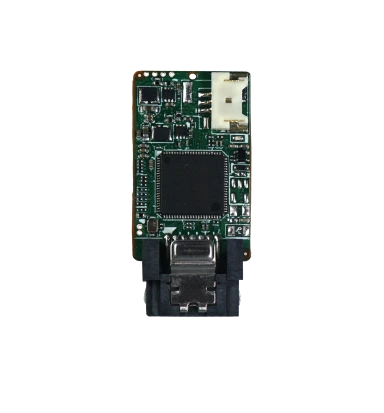

32GB Innodisk SATADOM-SV 3ME3, SATA 3, SATA Interface, MLC, Kioxia 15 nm IC, R/W 100/40 MB/s, Wide Temperature -40...+85 C

Price on request

Flash Disk

Type

Disk On Module

Connector / Socket

7-pin SATA

Construction

Open Frame

Interface

SATA 3

Type flash memory

MLC

Capacity

32 GB

Transfer Rate Maximum Read

100 MB/s

Transfer Rate Maximum Write

40 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

1000 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg

Flash Disk

Type

Disk On Module

Connector / Socket

7-pin SATA

Construction

Open Frame

Interface

SATA 3

Type flash memory

MLC

Capacity

32 GB

Transfer Rate Maximum Read

100 MB/s

Transfer Rate Maximum Write

40 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

1000 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg

Flash Disk

Type

Disk On Module

Connector / Socket

7-pin SATA

Construction

Open Frame

Interface

SATA 3

Type flash memory

MLC

Capacity

32 GB

Transfer Rate Maximum Read

100 MB/s

Transfer Rate Maximum Write

40 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

1000 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg

Flash Disk

Type

Disk On Module

Connector / Socket

7-pin SATA

Construction

Open Frame

Interface

SATA 3

Type flash memory

MLC

Capacity

32 GB

Transfer Rate Maximum Read

100 MB/s

Transfer Rate Maximum Write

40 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

1000 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg
