DHSSL-64GM41BWADCA

SKU: 10079000

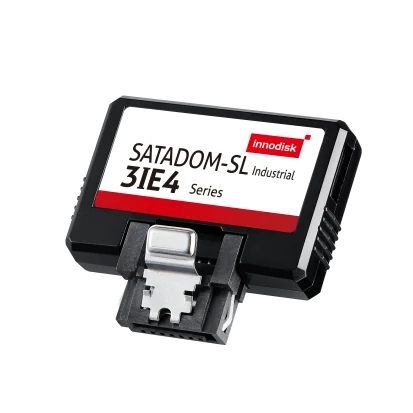

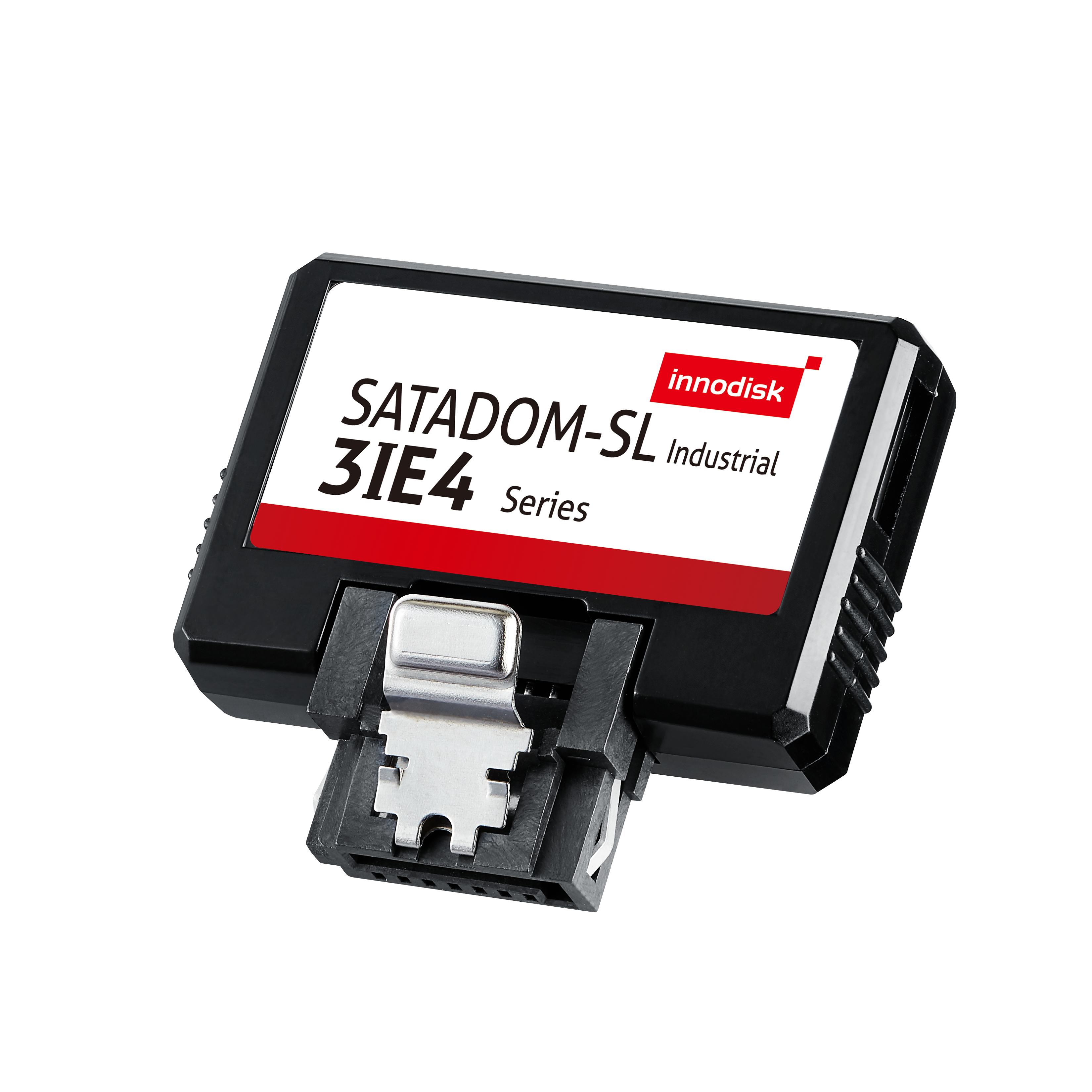

64GB Innodisk SATADOM-SL 3IE4, iSLC, SATA3, with Pin8 and power cable, -40...+85C

Price on request

Flash Disk

Type

Disk On Module

Connector / Socket

8-pin SATA

Construction

Build in Chassis

Interface

SATA 3

Type flash memory

iSLC

Capacity

64 GB

Transfer Rate Maximum Read

530 MB/s

Transfer Rate Maximum Write

250 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

265 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg

Flash Disk

Type

Disk On Module

Connector / Socket

8-pin SATA

Construction

Build in Chassis

Interface

SATA 3

Type flash memory

iSLC

Capacity

64 GB

Transfer Rate Maximum Read

530 MB/s

Transfer Rate Maximum Write

250 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

265 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg

Flash Disk

Type

Disk On Module

Connector / Socket

8-pin SATA

Construction

Build in Chassis

Interface

SATA 3

Type flash memory

iSLC

Capacity

64 GB

Transfer Rate Maximum Read

530 MB/s

Transfer Rate Maximum Write

250 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

265 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg

Flash Disk

Type

Disk On Module

Connector / Socket

8-pin SATA

Construction

Build in Chassis

Interface

SATA 3

Type flash memory

iSLC

Capacity

64 GB

Transfer Rate Maximum Read

530 MB/s

Transfer Rate Maximum Write

250 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

265 mA

Operating Conditions

Operating Temperature

-40..85 °C

Humidity

5-95%

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg
