DESSL-04GD07SCADB

SKU: 10290700

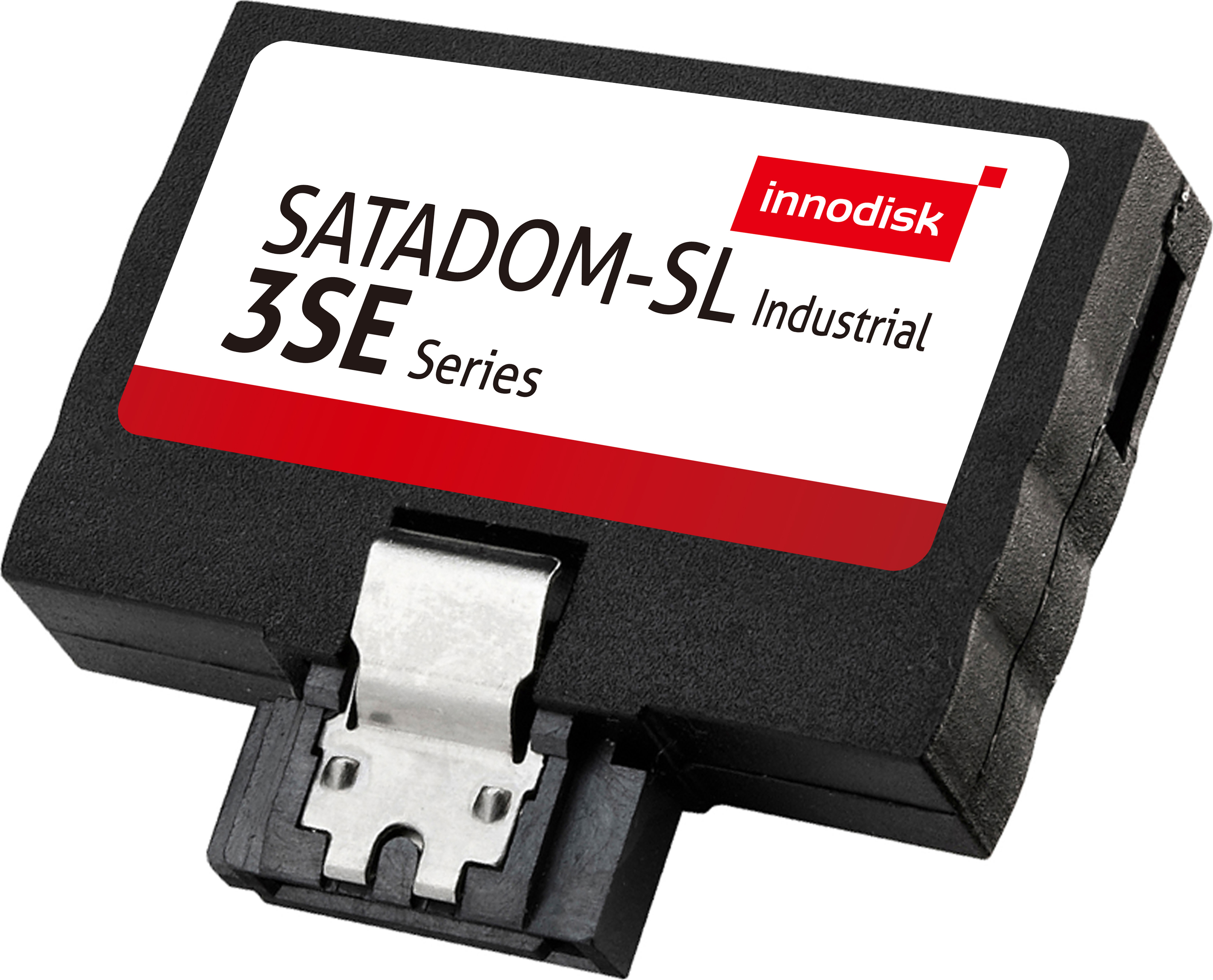

4GB Innodisk SATA III SATADOM-SL 3SE3 SLC, 2 channels, R/W 220/50 MB/s, 0C..70C

Price on request

Flash Disk

Type

Disk On Module

Connector / Socket

7-pin SATA

Construction

Build in Chassis

Interface

SATA 3

Type flash memory

SLC

Capacity

4 GB

Transfer Rate Maximum Read

220 MB/s

Transfer Rate Maximum Write

50 MB/s

System Power Input

Input Voltage DC

5..5 V

Current

370 mA

Operating Conditions

Operating Temperature

0..70 °C

Humidity

5-95%

Vibration

20G @7~2000Hz

Shock

1500G @ 0.5ms

MTBF

3000000 h

Dimensions

Net Weight

0.01 kg

Gross Weight

0.01 kg
